LMX2336UTM

high performance frequency synthesizer, 6.5V, 2000 MHz, 2.5 mA, 20TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: LMX2336UTM

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LMX2336UTM
US $0.15 - 2.40
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

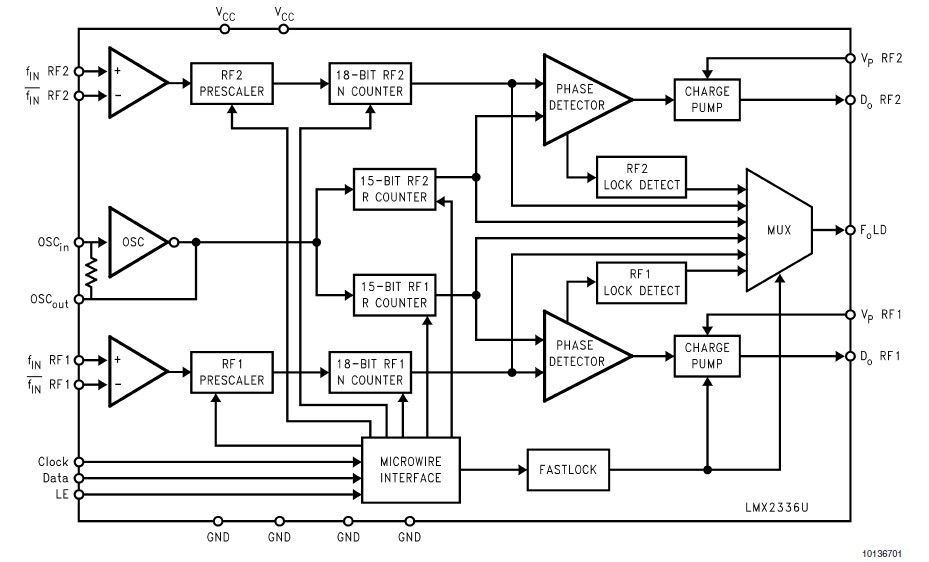

The LMX2336UTM is a high performance frequency synthesizer with integrated dual modulus prescalers. The LMX2336UTM is designed for use in applications requiring two RF phase-locked loops. A 64/65 or a 128/129 prescale ratio can be selected for each RF synthesizer. Using a proprietary digital phase locked loop technique, the LMX2336UTM generates very stable, low noise control signals for the RF voltage controlled oscillators. Both RF synthesizers include a two-level programmable charge pump. The RF1 synthesizer has dedicated Fastlock circuitry. Serial data is transferred to the devices via a three wire interface (Data, LE, Clock). Supply voltages from 2.7V to 5.5V are supported.

Parametrics

LMX2336UTM absolute maximum ratings: (1)VCC to GND: −0.3V to +6.5V; (2)VP RF1 to GND: −0.3V to +6.5V; (3)VP RF2 to GND: −0.3V to +6.5V; (4)Voltage on any pin to GND (VI)VI must be < +6.5V: −0.3V to VCC+0.3V; (5)Storage Temperature Range (TS): −65℃ to +150℃; (6)Lead Temperature (solder 4 s)(TL): +260℃; (7)ICCRF1 Power Supply: 2.0 to 2.5 mA; (8)fIN RF1: 200 to 2000 MHz.

Features

LMX2336UTM features: (1)Ultra Low Current Consumption; (2)Upgrade and Compatible to the LMX2335L and LMX2336L devices; (3)2.7V to 5.5V operation; (4)Selectable Synchronous or Asynchronous PowerdowMode: ICC-PWDN = 1 μA typical at 3.0V; (5)Selectable Dual Modulus Prescaler; (6)Selectable Charge Pump TRI-STATE Mode; (7)Programmable Charge Pump Current Levels RF1 and RF2: 0.95 or 3.8 mA; (8)Selectable Fastlock Mode for the RF1 Synthesizer; (9)Push-Pull Analog Lock Detect Mode; (10)LMX2335U is available i16-PiTSSOP and 16-PiCSP; (11)LMX2336U is available i20-PiTSSOP, 24-PiCSP, and 20-PiUTCSP.
