Product Summary
The LT1001CS8#TR is a Precision Operational Amplifier which significantly advances the state-of-theart of precision operational amplifiers. In the design, processing, and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications of the lowest cost, commercial temperature device, the LT1001CS8#TR, has been dramatically improved when compared to equivalent grades of competing precision amplifiers. The applications of the LT1001CS8#TR include Thermocouple amplifiers, Strain gauge amplifiers, Low level signal processing, High accuracy data acquisition.
Parametrics
LT1001CS8#TR absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: ±22V; (4)Output Short Circuit Duration: Indefinite; (5)Operating Temperature Range: 0℃ to 125℃; (6)Storage: All Devices: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LT1001CS8#TR features: (1)Guaranteed Low Offset Voltage, LT1001C: 60mV max; (2)Guaranteed Low Drift, LT1001C: 1.0mV/℃ max; (3)Guaranteed Low Bias Current, LT1001C: 4nA max; (4)Guaranteed CMRR, LT1001C: 110dB min; (5)Guaranteed PSRR, LT1001C: 106dB min; (6)Low Power Dissipation, LT1001C: 80mW max; (7)Low Noise: 0.3mVP-P.

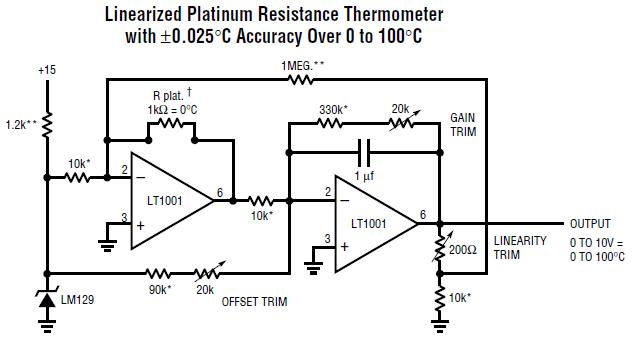

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1001CS8#TR |
|
IC OP AMP PRECISION 8SOIC |
Data Sheet |
|
|
||||||
|
LT1001CS8#TRPBF |
|
IC PRECISION OP-AMP SINGLE 8SOIC |
Data Sheet |
|
|
||||||
