Product Summary
The LT1009S8#TR is a precision trimmed 2.5V shunt regulator diode featuring a maximum initial tolerance of only ±5mV. The low dynamic impedance and wide operating current range enhances its versatility. The 0.2% reference tolerance is achieved by on-chip trimming which not only minimizes the initial voltage tolerance but also minimizes the temperature drift. The applications of the LT1009S8#TR include Reference for 5V Systems, 8-Bit A/D and D/A Reference, Digital Voltmeters, Current Loop Measurement and Control Systems, Power Supply Monitor.
Parametrics
LT1009S8#TR absolute maximum ratings: (1)Reverse Current: 20mA; (2)Forward Current: 10mA; (3)Storage Temperature Range: -65℃ to 150℃; (4)Lead Temperature (Soldering, 10 sec): 300℃; (5)Operating Temperature Range: 0℃ to 70℃.
Features
LT1009S8#TR features: (1)Maximum Initial Tolerance: 0.2%; (2)Guaranteed Temperature Stability; (3)Maximum 0.6Ω Dynamic Impedance; (4)Wide Operating Current Range; (5)Directly Interchangeable with LM136 for Improved Performance; (7)No Adjustments Needed for Minimum Temperature Coefficient.

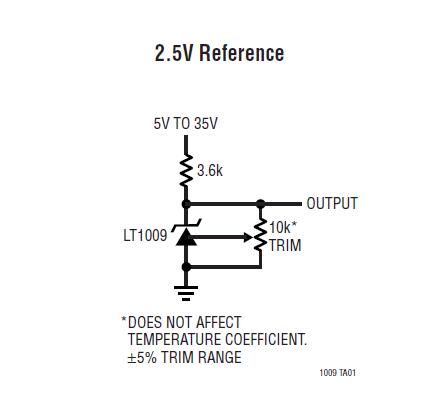

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1009S8#TR |
|
IC VREF SHUNT 2.5V 8-SOIC |
Data Sheet |
|
|
||||||
|
LT1009S8#TRPBF |
|
IC VREF SHUNT 2.5V 8-SOIC |
Data Sheet |
|
|
||||||
