Product Summary
The LT1012S8#TR is an internally compensated universal precision operational amplifier which can be used in practically all precision applications. The LT1012S8#TR combines picoampere bias currents (which are maintained over the full -55℃ to 125℃ temperature range), microvolt offset voltage (and low drift with time and temperature), low voltage and current noise, and low power dissipation. The LT1012S8#TR achieves precision operation on two Ni-Cad batteries with 1mW of power dissipation. The applications of the LT1012S8#TR include Replaces OP-07 While Saving Power, Precision Instrumentation, Charge Integrators, Wide Dynamic Range Logarithmic Amplifiers, Light Meters, Low Frequency Active Filters, Thermocouple Amplifiers.
Parametrics
LT1012S8#TR absolute maximum ratings: (1)Supply Voltage: ± 20V; (2)Differential Input Current: ± 10mA; (3)Input Voltage: ± 20V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1012S8#TR features: (1)OP-07 Type Performance: at 1/8th of OP-07’s Supply Current; at 1/20th of OP-07’s Bias and Offset Currents; (2)Guaranteed Offset Voltage: 25mV Max; (3)Guaranteed Bias Current: 100pA Max; (4)Guaranteed Drift: 0.6mV/℃ Max; (5)Low Noise, 0.1Hz to 10Hz: 0.5mVP-P; (6)Guaranteed Low Supply Current: 500mA Max; (7)Guaranteed CMRR: 114dB Min; (8)Guaranteed PSRR: 114dB Min; (9)Guaranteed Operation at ±1.2V Supplies.

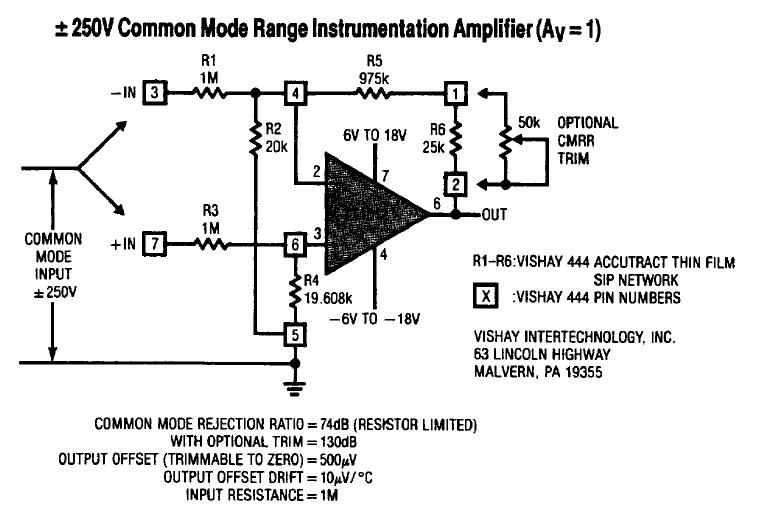

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1012S8#TR |
|
IC OP AMP PREC SGL UNIV 8SOIC |
Data Sheet |
|
|
||||||
|
LT1012S8#TRPBF |
|
IC PREC OP-AMP UNVRSL SNGL 8SOIC |
Data Sheet |
|
|
||||||
