Product Summary

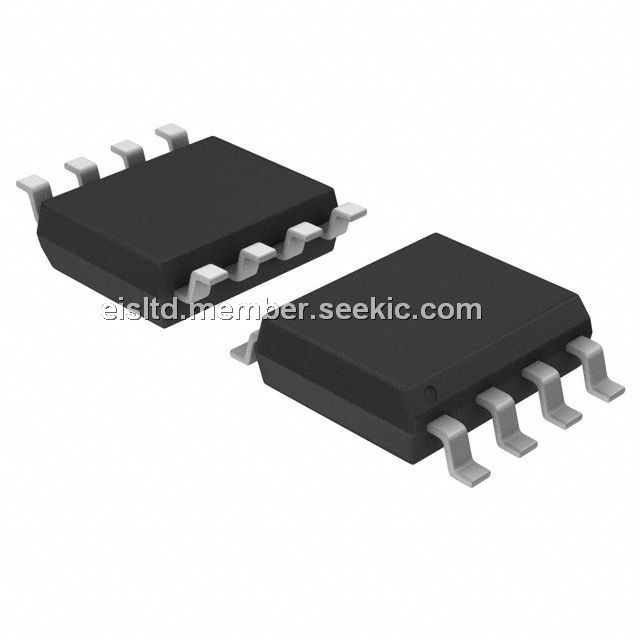

The TC1232COA is a fully-integrated processor supervisor that provides three important functions to safeguard processor sanity: precision power on/off reset control, watchdog timer and external reset override. On power-up, the TC1232COA holds the processor in the reset state for a minimum of 250 msec after VCC is within tolerance to ensure a stable system start-up. The applications of the TC1232COA are Computers, Controllers, Intelligent Instruments, Automotive Systems, Critical uP Power Monitoring.
Parametrics
TC1232COA absolute maximum ratings: (1)Voltage on Any Pin (With Respect to GND):-0.3V to +5.8V; (2)Operating Temperature Range: C-Version:0℃ to +70℃, E-Version:-40℃ to +85℃; (3)Storage Temperature Range:-65℃ to +150℃.
Features
TC1232COA features: (1)Precision Voltage Monitor: Adjustable +4.5V or +4.75V; (2)Reset Pulse Width:250 msec minimum; (3)No External Components; (4)Adjustable Watchdog Timer: 150 msec, 600 msec or 1.2 sec; (5)Debounced Manual Reset Input for External Override.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC1232COA |
Microchip Technology |
Supervisory Circuits Microprocessor Montr |
Data Sheet |
|
|
||||||||||||
|
TC1232COA713 |
Microchip Technology |
Supervisory Circuits Microprocessor Montr |
Data Sheet |
|
|
||||||||||||
