Product Summary
The LT1016CN8 is an UltraFast 10ns comparator that interfaces directly to TTL/CMOS logic while operating off either ±5V or single 5V supplies. Tight offset voltage specifications and high gain allow the LT1016CN8 to be used in precision applications. Matched complementary outputs further extend the versatility of this comparator. A unique output stage provides active drive in both directions for maximum speed into TTL/CMOS logic or passive loads, yet does not exhibit the large current spikes found in conventional output stages. The applications of the LT1016CN8 include High Speed A/D Converters, High Speed Sampling Circuits, Line Receivers, Extended Range V-to-F Converters, Fast Pulse Height/Width Discriminators, Zero-Crossing Detectors, Current Sense for Switching Regulators, High Speed Triggers, Crystal Oscillators.
Parametrics
LT1016CN8 absolute maximum ratings: (1)Positive Supply Voltage: 7V; (2)Negative Supply Voltage: 7V; (3)Differential Input Voltage: ±5V; (4)+IN, –IN and LATCH ENABLE Current: ±10mA; (5)Output Current (Continuous): ±20mA; (6)Storage Temperature Range: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1016CN8 features: (1)UltraFast (10ns typ); (2)Operates Off Single 5V Supply or ±5V; (3)Complementary Output to TTL; (4)Low Offset Voltage; (5)No Minimum Input Slew Rate Requirement; (6)No Power Supply Current Spiking; (7)Output Latch Capability.

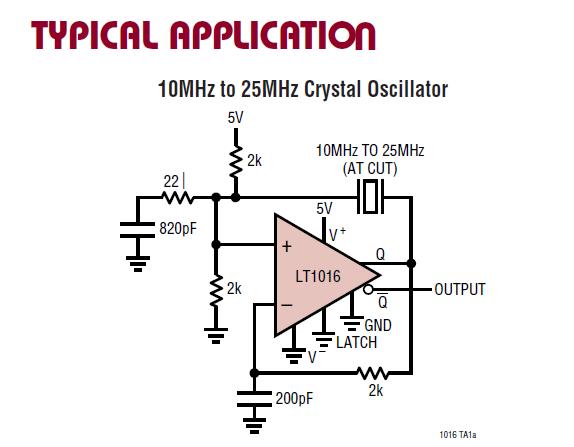

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1016CN8 |
|

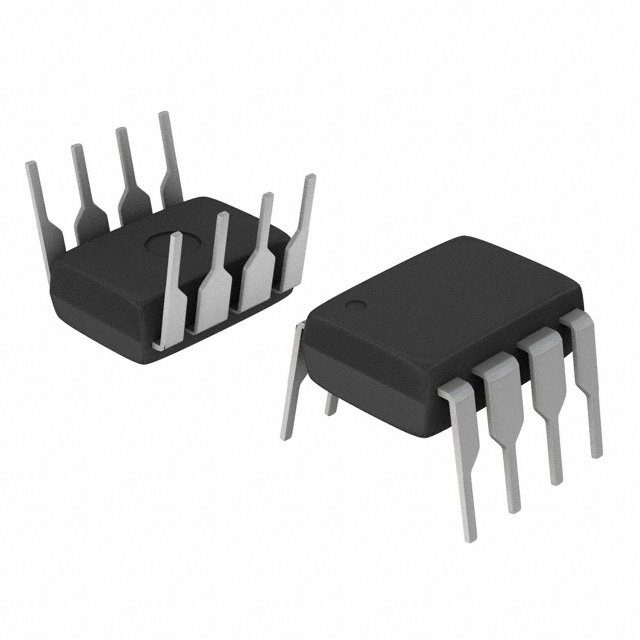

IC COMPARATOR 10NS HI-SPEED 8DIP |
Data Sheet |
|
|
||||||||||
|
LT1016CN8#PBF |
|
IC COMPARATOR 10NS HI-SPEED 8DIP |
Data Sheet |
|
|
||||||||||
