Product Summary
The LT1178S8#TR is a 17μA Max, dual and quad, single supply, precision op amp. The extremely low supply current is combined with true precision specifications: offset votlage is 30μV, offset current is 50pA. Both offset parameters have low drift with temperature. Its applications include battery or solar powered systems, micropower sample-and-hold, thermocouple amplifier, micropower filters.
Parametrics
LT1178S8#TR absolute maximum ratings: (1)supply voltage: ±22V; (2)differential input voltage: ±30V; (3)input voltage: equal to positive supply voltage; (4)operating temperature range: -40 to 85℃.
Features
LT1178S8#TR features: (1)17μA max supply current per amplifier; (2)70μV max offset voltage; (3)85kHz gain-bandwidth product; (4)1.5pA 0.1Hz to 10Hz current noise; (5)250pA max offset current.

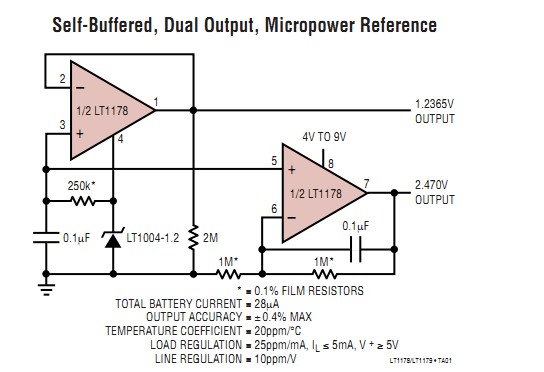

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1178S8#TR |
|
IC OPAMP DUAL PREC MCRPWR 8SOIC |
Data Sheet |
|
|
||||||
|
LT1178S8#TRPBF |
|
IC PREC OPAMP MCRPWR DUAL 8-SOIC |
Data Sheet |
|
|
||||||
