Product Summary
The LT1217CS8#TR is a low power 10MHz current feedback amplifier. It is manufactured on Linear Technologys proprietary complementary bipolar process resulting in a low 1mA quiescent current. To reduce power dissipation further, the LT1217CS8#TR can be turned off, eliminating the load currentand dropping the supply current to 350 A. Its applications include Video Amplifiers, Buffers, IF and RF Amplification, Cable Drivers, 8, 10, 12-Bit Data Acquisition Systems.
Parametrics
LT1217CS8#TR absolute maximum ratings: (1)supply voltage: 18V; (2)input current: 10mA; (3)input voltage: equal to supply voltage; (4)output short circuit duration: continuous; (5)operating temperature range: 0 to 70℃; (6)junction temperature: 150℃; (7)lead temperature: 300℃.
Features
LT1217CS8#TR features: (1)1mA Quiescent Current; (2)50mA Output Current (Minimum); (3)10MHz Bandwidth500V/s Slew Rate; (4)280ns Settling Time to 0.1%; (5)Wide Supply Range, 5V to 15V; (6)1mV Input Offset Voltage; (7)100nA Input Bias Current; (8)100M Input Resistance.

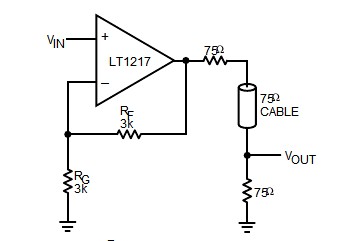

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1217CS8#TR |
|
IC AMP CURR FEEDBACK 10MHZ 8SOIC |
Data Sheet |
|
|
||||||
|
LT1217CS8#TRPBF |
|
IC CURRNT FEEDBK AMP 10MHZ 8SOIC |
Data Sheet |
|
|
||||||
