The LT1230CS#TR is a dual and quad 100MHz current feedback amplifier. It is designed for maximum performance in small packages. Using industry standard pinouts, the dual is available in the 8-pin miniDIP and the 8-pin SO package while the quad is in the 14-pin DIP and 14-pin SO. Its applications include Video Instrumentation Amplifiers, Cable Drivers, RGB Amplifiers, Test Equipment Amplifiers.
Parametrics
LT1230CS#TR absolute maximum ratings: (1)Supply voltage: 18V; (2)input current: 15mA; (3)output short circuit duration: continuous; (4)operating temperature range: 0 to 70℃; (5)storage temperautre range: -65 to 150℃; (6)lead temperature: 300℃.
Features
LT1230CS#TR features: (1)100MHz Bandwidth; (2)1000V/s Slew Rate; (3)Low Cost; (4)30mA Output Drive Current; (5)0.04% Differential Gain; (6)0.1° Differential Phase; (7)High Input Impedance: 25M, 3pF; (8)Wide Supply Range: ±2V to ±15V; (9)Low Supply Current: 6mA Per Amplifier; (10)Inputs Common Mode to Within 1.5V of Supplies.

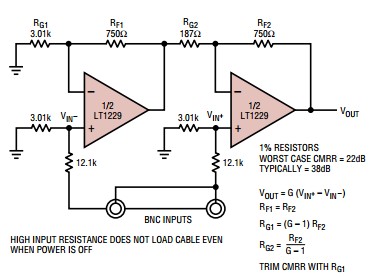

Diagrams
