Product Summary
The LT1236ACS8-10#TR is a precision reference that combines ultralow drift and noise with excellent long-term stability and high output accuracy. The applications of the LT1236ACS8-10#TR include A/D and D/A Converters, Precision Regulators, Precision Scales, Inertial Navigation Systems, Digital Voltmeters.
Parametrics
LT1236ACS8-10#TR absolute maximum ratings: (1)input voltage: 40V; (2)input/output voltage different: 35V; (3)output-to-ground voltage: 10V; (4)trim pin-to-ground voltage: -20V; (5)output short-circuit duration: 10sec; (6)operating temperature range: 0 to 70℃; (7)storage temperature range: -65 to 150℃; (8)lead temperature: 300℃.
Features
LT1236ACS8-10#TR features: (1)Ultra-Low Drift: 5ppm/°C Max; (2)Trimmed to High Accuracy: 0.05% Max; (3)Industrial Temperature Range SO Package; (4)Operates in Series or Shunt Mode; (5)Pin Compatible with AD586, AD587; (6)Output Sinks and Sources in Series Mode; (7)Very Low Noise < 1ppm P-P (0.1Hz to 10Hz); (8)100% Noise Tested; (9)> 100dB Ripple Rejection; (10)Minimum Input/Output Differential of 1V.

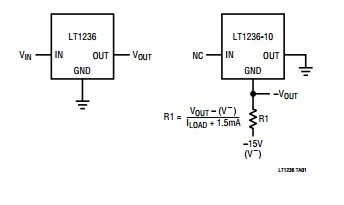

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1236ACS8-10#TR |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||
|
LT1236ACS8-10#TRPBF |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||
