Product Summary
The LT1399CS#TR is a low cost dual and triple current feedback amplifier with shutdown. Its applications include portable equipment, RGB cable drivers, LCD drivers, spread spectrum amplifiers, MUX amplifiers, compositive video cable drives.
Parametrics
LT1399CS#TR absolute maximum ratings: (1)total supply voltage: 12.6V; (2)input current: ±10mA; (3)output current: ±100mA; (4)differential input voltage: ±5V; (5)storage temperature range: -65 to 150℃; (6)lead temperature: 300℃.
Features
LT1399CS#TR features: (1)complete off in shutdown; (2)high slew rate: 800V/μs; (3)80mA output current; (4)low supply current: 4.6mA/amplifier; (5)fast turn-on time: 30ns; (6)16-pin narrow SO/narrow SSOP packages.

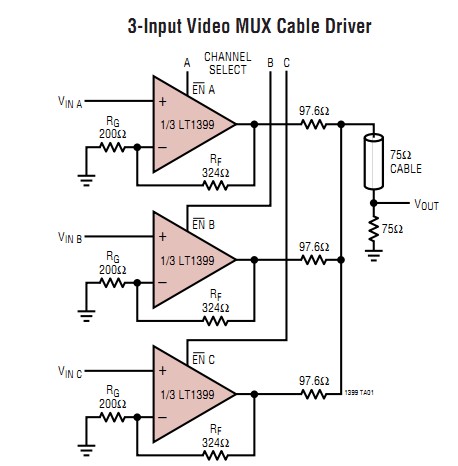

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1399CS#TR |
|

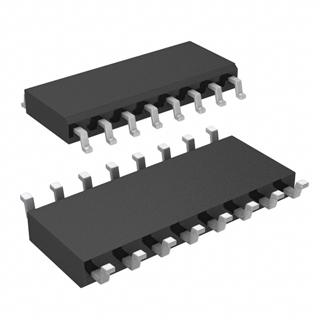

IC AMP CURR FEEDBACK TRPL 16SOIC |
Data Sheet |
|
|
||||||
|
LT1399CS#TRPBF |
|
IC CURRNT FEEDBK AMP TRPL 16SOIC |
Data Sheet |
|
|
||||||
