Product Summary
The LT1493CS#TR is a low power single supply, dual and quad precision op amp. Its applications include Active Filters, Photodiode Amplifiers, DAC Current to Voltage Amplifiers.
Parametrics
LT1493CS#TR absolute maximum ratings: (1)total supply voltage: 36V; (2)Input current: ±15mA; (3)operating temperature range: -40 to 85℃; (4)specified temperature range: -40 to 85℃; (5)lead temperature: 300℃.
Features
LT1493CS#TR features: (1)Gain-Bandwidth Product: 5MHz Typ; (2)Slew Rate: 3V/µs Typ; (3)Low Supply Current per Amplifier: 0.55mA Max; (4)Input Offset Voltage: 180µV Max; (5)Input Offset Voltage Drift: 3µV/°C Max.

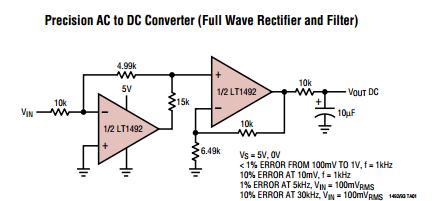

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1493CS#TR |
|
IC OPAMP PREC QUAD 5MHZ 16SOIC |
Data Sheet |
|
|
||||||
|
LT1493CS#TRPBF |
|
IC OP-AMP LOW POWER QUAD 16-SOIC |
Data Sheet |
|
|
||||||
