Product Summary
The LT1521CS8#TR is a low dropout regulator with micropower quiescent current and shutdown. Its applications include Low Current Regulator, Regulator for Battery-Powered Systems, Post Regulator for Switching Supplies.
Parametrics
LT1521CS8#TR absolute maximum ratings: (1)Input Voltage: ± 20V; (2)Output Pin Reverse Current: 10mA; (3)Adjust Pin Current: 10mA; (4)Shutdown Pin Input Voltage: 6.5V, –0.6V; (5)Shutdown Pin Input Current: 5mA.
Features
LT1521CS8#TR features: (1)Dropout Voltage: 0.5V; (2)Output Current: 300mA; (3)Quiescent Current: 12µA; (4)No Protection Diodes Needed; (5)Adjustable Output from 3.8V to 20V; (6)Fixed Output Voltages: 3V, 3.3V, 5V.

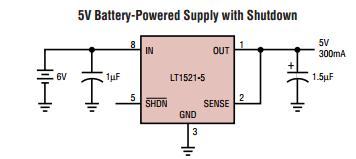

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1521CS8#TR |
|
IC REG LDO ADJ .3A 8SOIC |
Data Sheet |
|
|
||||||
|
LT1521CS8#TRPBF |
|
IC REG LDO ADJ .3A 8-SOIC |
Data Sheet |
|
|
||||||
