Product Summary

The LT1631CS#TR is a dual/quad rail-to-rail input and output precision op amp. Its applications include Active Filters, Rail-to-Rail Buffer Amplifiers, Driving A/D Converters, Low Voltage Signal Processing, Battery-Powered Systems. The LT1631CS#TR has excellent DC precision over the full range of operation. The output delivers load currents in excess of 35mA.

Parametrics

LT1631CS#TR absolute maximum ratings: (1)total supply voltage: 36V; (2)Input current: ±10mA; (3)operating temperature range: -40 to 85℃; (4)junction temperature: 150℃; (5)lead temperature: 300℃.

Features

LT1631CS#TR features: (1)Input Common Mode Range Includes Both Rails; (2)Output Swings Rail-to-Rail; (3)Input Offset Voltage, Rail-to-Rail: 525µV Max; (4)Input Offset Current: 150nA Max; (5)Input Bias Current: 1000nA Max; (6)Open-Loop Gain: 1000V/mV Min.

Diagrams

LT1631CS#TR typical applications

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

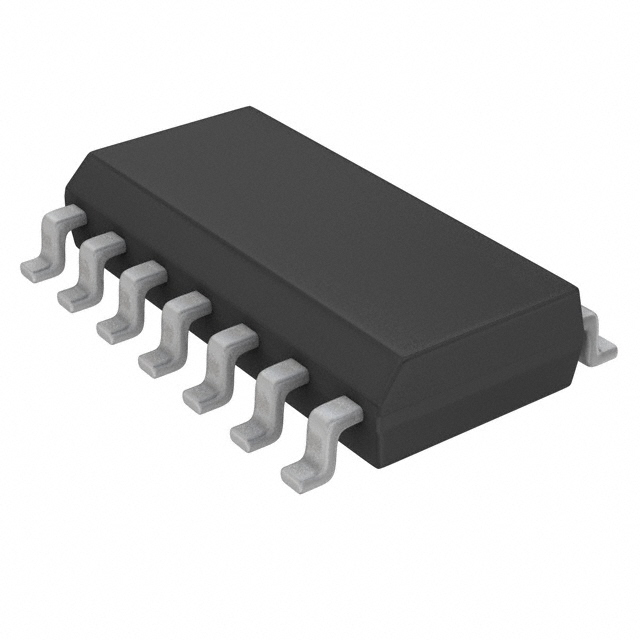

LT1631CS#TR
LT1631CS#TR


IC OPAMP PREC RR I/O QUAD 14SOIC

Data Sheet

0-2500: $3.71
LT1631CS#TRPBF
LT1631CS#TRPBF


IC OPAMP R-R IN/OUT QUAD 14SOIC

Data Sheet

0-2500: $3.71
