Product Summary
The LT1671IS8#TR is a single supply ground-sensing comparator. Its applications include high speed A/D converters, zero-crossing detectors, current sense for switching regulators, extended range V/F coverters. The LT1671IS8#TR is designed for improved speed and stability for a wide range of operating conditions. The output stage provides active drive in both directions for maximum speed into TTL, CMOS or passive loads with minimal cross-conduction current.
Parametrics
LT1671IS8#TR absolute maximum ratings: (1)total supply voltage: 12V; (2)Positive supply voltage: 7V; (3)negative supply voltage: -7V; (4)input and latch current: ±10mA; (5)operating temperature range: -40 to 85℃; (6)lead temperature: 300℃.
Features
LT1671IS8#TR features: (1)low pwoer: 450μA; (2)low offset voltage: 0.8mV; (3)operates off single 5V or dual ±5V supplies; (4)no minimum input slew rate requirement; (5)complementary TTL outputs.

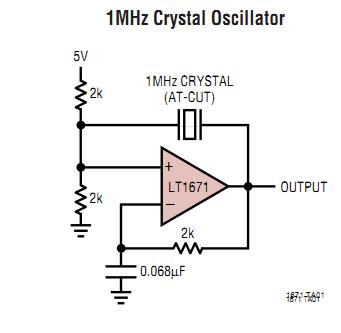

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1671IS8#TR |
|
IC COMPARATOR 60NS LOW PWR 8SOIC |
Data Sheet |
|
|
||||||
|
LT1671IS8#TRPBF |
|
IC COMPARATOR 60NS LOW PWR 8SOIC |
Data Sheet |
|
|
||||||
