Product Summary

The LT1884AIS8#TR op amp brings high accuracy input performance to amplifiers with rail-to-rail output swing while providing faster response than other precision amplifiers. Innput offset voltage of the LT1884AIS8#TR is trimmed to less than 50μV, and the low drift maintains this accuracy over the operating temperature range. Applications of the LT1884AIS8#TR include: Thermocouple Amplifiers, Bridge Transducer Conditioners, Instrumentation Amplifiers, Battery-Powered Systems, Photo Current Amplifiers, Precision Integrators, Precision Current Sources.

Parametrics

LT1884AIS8#TR aboslute maximum ratings: (1) Supply Voltage (V+ to V- ) : 40V; (2) Differential Input Voltage: ±10V; (3) Input Voltage:V+ to V-; (4) Input Current: ±10mA; (5) Output Short-Circuit Duration: Indefinite; (6) Operating Temperature Range: -40°C to 85°C; (7) Specified Temperature Range: -40°C to 85°C; (8) Maximum Junction Temperature: 150°C; (9) Storage Temperature Range: -65°C to 150°C; (10) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LT1884AIS8#TR features: (1) Offset Voltage: 50μV Max; (2) Input Bias Current: 400pA Max; (3) Offset Voltage Drift: 0.8μV/°C Max; (4) Rail-to-Rail Output Swing; (5) Operates with Single or Split Supplies; (6) Open-Loop Voltage Gain: 1 Million Min; (7) 1mA Maximum Supply Current Per Amplifier; (8) Slew Rate: 1V/μs; (9) Standard Pinouts.

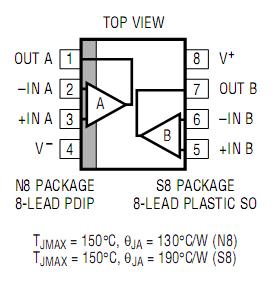

Diagrams

LT1884AIS8#TR

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1884AIS8#TR
LT1884AIS8#TR


IC OPAMP DUAL R-R PICO/IN 8SOIC

Data Sheet

0-2500: $2.81
LT1884AIS8#TRPBF
LT1884AIS8#TRPBF


IC OPAMP DUAL R-R PICO/IN 8SOIC

Data Sheet

0-2500: $2.76
