Product Summary

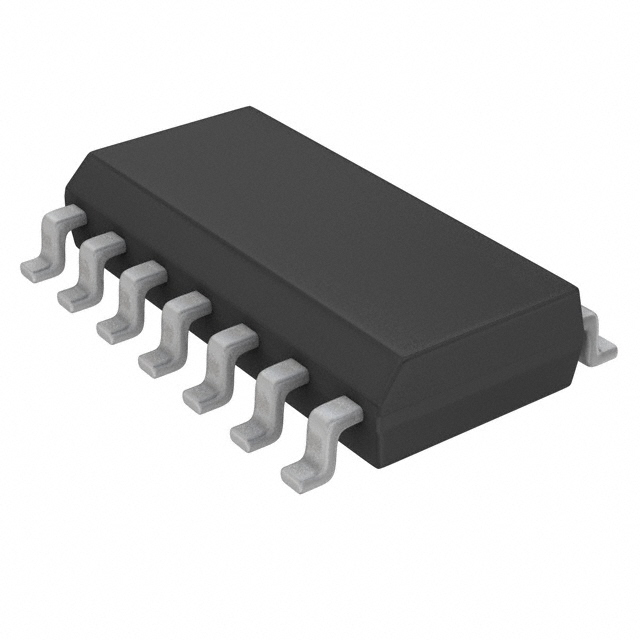

The LT2179CS#TR is a micropower quad op amp offered in a surface mount 14-pin package. The LT2179CS#TR is optimized for single supply operation at 5V. The specification of LT2179CS#TR is also provided at ±15V supply. The LT2179CS#TR can be operated from a single supply (as low as one lithium-cell or two NiCd batteries). Applications of the LT2179CS#TR include: Battery- or Solar-Powered Systems, Portable Instrumentation, Remote Sensor Amplifier, Satellite Circuitry, Micropower Sample-and-Hold, Thermocouple Amplifier, Micropower Filters.
Parametrics
LT2179CS#TR aboslute maximum ratings: (1) Supply Voltage: ±22V; (2) Differential Input Voltage: ±30V; (3) Input Voltage: Equal to Positive Supply Voltage, 5V Below Negative Supply Voltage; (4) Output Short-Circuit Duration: Indefinite; (5) Specified Temperature Range: Commercial: 0°C to 70°C, Industrial: -40°C to 85°C; (6) Storage Temperature Range: -65°C to 150°C; (7) Lead Temperature (Soldering, 10 sec): 300°C.
Features
LT2179CS#TR Features: (1) SO Package with Standard Pinout; (2) Supply Current per Amplifier: 17μA Max; (3) Offset Voltage: 70μV Max; (4) Offset Current: 250pA Max; (5) Input Bias Current: 5nA Max; (6) Voltage Noise: 0.9μVp-p , 0.1Hz to 10Hz; (7) Offset Voltage Drift: 0.5μVμ/°C; (8) Gain Bandwidth Product: 85kHz; (9) Slew Rate: 0.04V/μs; (10) Single Supply Operation: Input Voltage Range Includes Ground, Output Swings to Ground while Sinking Current, No Pull-Down Resistors Needed; (11) Output Sources and Sinks 5mA Load Current.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT2179CS#TR |
|
IC OPAMP PREC QUAD MCRPWR 14SOIC |
Data Sheet |
|
|
||||||
|
LT2179CS#TRPBF |
|
IC OPAMP MICROPOWER QUAD 14SOIC |
Data Sheet |
|
|
||||||
