Product Summary
The LT4254CGN#TR is a high voltage Hot Swap controller that allows a board to be safely inserted and removed from a ive backplane. An internal driver of the LT4254CGN#TR controls the high side N-channel MOSFET gate for supply voltages ranging from 10.8V to 36V. The LT4254CGN#TR features an open-circuit detect (OPEN) output that indicates abnormally low load current conditions. Applications of the LT4254CGN#TR include: Hot Board Insertion, Electronic Circuit Breaker/Power Bussing, Industrial High Side Switch/Circuit Breaker, 24V Industrial/Alarm Systems, 12V and 24V Distributed Power Systems.
Parametrics
LT4254CGN#TR absolute maximum ratings: (1) Supply Voltage (Vcc ): -0.3 to 44V; (2) InputVoltage(SENSE, PWRGD) : -0.3 to 44V; (3) Input Voltage(GATE Voltage) : - 0.3V to 50V ; (4) Input Voltage (FB, UV, OPEN) : -0.3V to 44V; (5) Output Voltage (OV) : -0.3 to 18V; (6) Input Voltage (RETRY) : -0.3 to 15V; (7) Input Voltage (TIMER) : -0.3V; (8)Maximum Input Current (TIMER) :100μA; (9) Operating Temperure: 0°C to 70°C ; (10) Storage Temperature Range: -65°C to 150°C; (11) Lead Temperature (Soldering, 10 sec): 300°C.
Features
LT4254CGN#TR features: (1)Allows Safe Board Insertion and Removal from a Live Backplane; (2) Controls Supply Voltage from 10.8V to 36V; (3) Foldback Current Limiting; (4) Open Circuit and Overcurrent Fault Detect; (5) Drives an External N-Channel MOSFET; (6) Automatic Retry or Latched Off Operation After Overcurrent Fault; (7) Programmable Supply Voltage Power-Up Rate; (8) Undervoltage and Overvoltage Protection; (9) Undervoltage and Overvoltage Protection.

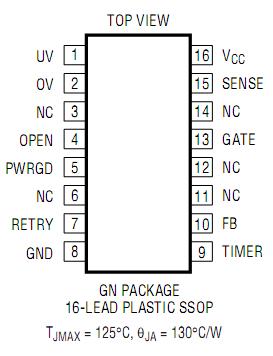

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT4254CGN#TR |
|
IC CTLR HOTSWAP POS 16-SSOP |
Data Sheet |
|
|
||||||
|
LT4254CGN#TRPBF |
|
IC CTRLR HOTSWAP POSVOLT 16SSOP |
Data Sheet |
|
|
||||||
