The LTC1064-3CSW#TR is a monolithic 8th order lowpass Besse filte, which provides a linear phase response over its entire passband. An external TTL or CMOS clock programs the cutoff frequency of LTC1064-3CSW#TR.The LTC1064-3 features low wideband noise and low harmonic distortion even for input voltages up to 3VRMS. In fact the LTC1064-3CSW#TR overall performance competes with equivalent multiple op amp RC active realizations. Applications of LTC1064-3CSW#TR include: Antialiasing Filters, Smoothing Filters and Tracking High Frequency Lowpass Filters.
Parametrics
LTC1064-3CSW#TR aboslute maximum ratings: (1) Total Supply Voltage(V+ to V-) : 16.5V; (2) Power Dissipation: 400mW; (4) Storage Temperature Range: -65°C to 150°C; (5) Lead Temperature (Soldering, 10 sec) : 300°C; (6) Operating Temperature Range: LTC1064-3M (OBSOLETE) : -55°C to 125°C, LTC1064-3C: -40°C to 85°C; (7) Input Voltage: (V+ +0.3 V to V- -0.3 V) ; (8) Burn-In Voltage: 15V.
Features
LTC1064-3CSW#TR features: (1) 8th Order Filter in a 14-Pin Package; (2) 95kHz Maximum Corner Frequency; (3) No External Components; (4) 75:1, 150:1 and 120:1 Clock to Cutoff Frequency Ratio; (5) 60μV Total Wideband Noise; (6) 0.03% THD or Better; (7) Operates from ±2.37V to ±8V Power Supplies; (8) Low Total Output DC Offset.
Diagrams

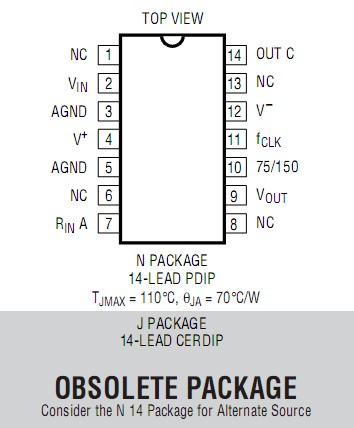

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

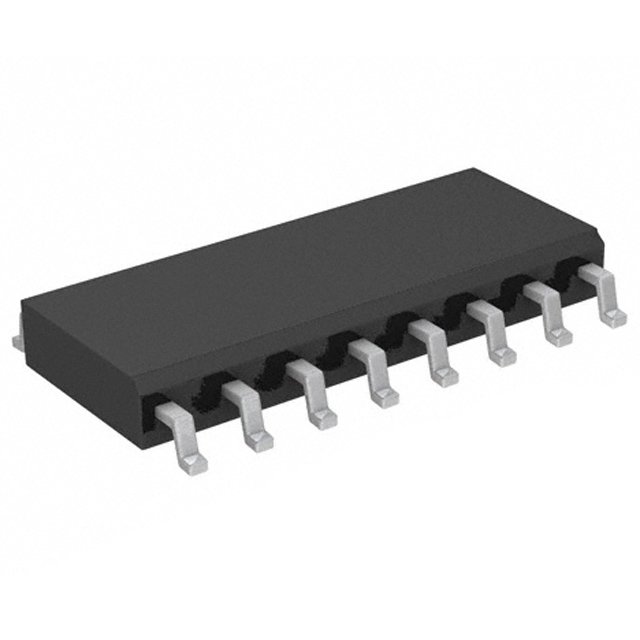

 LTC1064-3CSW#TR |
|
