Product Summary

The LTC1174CS8-3.3#TR is a simple current mode DC/DC converter ideally suited for 9V to 5V, 5V to 3.3V or 5V to -5V operation. With an internal 0.9Ω switch (at a supply voltage of 9V), the LTC1174CS8-3.3#TR requires only four external components to construct a complete high efficiency DC/DC converter. Under a no load condition the LTC1174CS8-3.3#TR draws only 130μA. In shutdown, it draws a mere 1μA making this converter ideal for current sensitive applications. In dropout, the internal P-channel MOSFET switch is turned on continuously allowing the user to maximize the life of the battery source. The maximum inductor current of the LTC1174CS8-3.3#TR is pin selectable to either 340mA or 600mA, optimizing efficiency for a wide range of applications. Operation up to 200kHz permits the use of small surface mount inductors and capacitors.

Parametrics

LTC1174CS8-3.3#TR absolute maximum ratings: (1)(Voltage Referred to GND Pin) Input Supply Voltage (Pin 6): – 0.3V to 13.5V; (2)Switch Current (Pin 5): 1A; (3)Switch Voltage (Pin 5): VIN – 13.5V; (4)Junction Temperature: 125℃; (5)Storage Temperature Range: –65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1174CS8-3.3#TR features: (1)High Efficiency: Up to 94%; (2)Peak Inductor Current Independent of Inductor Value; (3)Short-Circuit Protection; (4)Optimized for 5V to –5V Applications; (5)Wide VIN Range: 4V to 18.5V; (6)Low Dropout Operation; (7)Low-Battery Detector; (8)Pin Selectable Current Limit; (9)Internal 0.9Ω Power Switch: VIN = 9V; (10)Only Four External Components Required; (11)130μA Standby Current; (12)Active Low Micropower Shutdown.

Diagrams

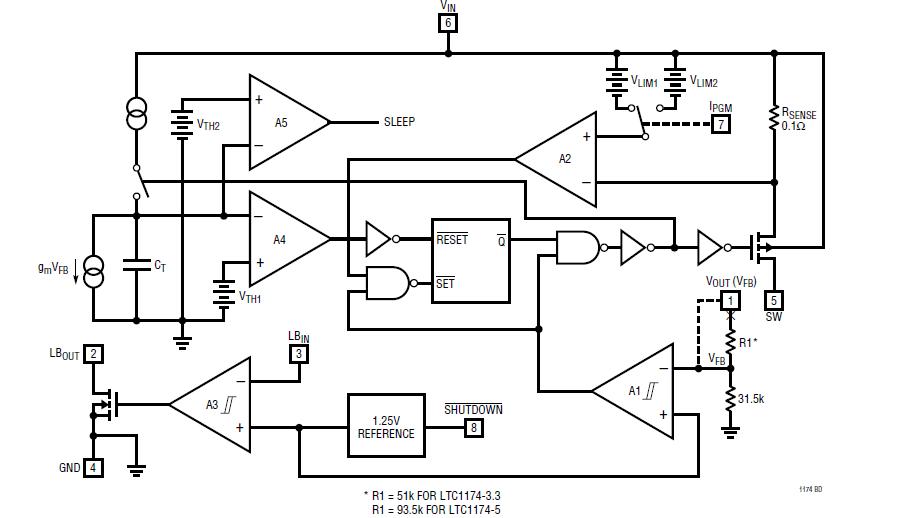

LTC1174CS8-3.3#TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC1174CS8-3.3#TR
LTC1174CS8-3.3#TR


IC REG BUCK INV 3.3V 1A 8SOIC

Data Sheet

0-2500: $2.31
LTC1174CS8-3.3#TRPBF
LTC1174CS8-3.3#TRPBF


IC REG BUCK INV 3.3V 1A 8SOIC

Data Sheet

0-2500: $2.31
