Product Summary

The LTC1257IS8#TR is a complete single supply, 12-bit voltage output D/A converter (DAC) in an SO-8 package. The LTC1257IS8#TR includes an output buffer amplifier, 2.048V voltage reference and an easy to use three-wire cascadable serial interface. An external reference can be used to override the internal reference and extend the output voltage range to 12V. The power supply current is a low 350mA when operating from a 5V supply, making the LTC1257IS8#TR ideal for battery-powered applications. The applications of the LTC1257IS8#TR include Digital Offset/Gain Adjustment, Industrial Process Control, Automatic Test Equipment.

Parametrics

LTC1257IS8#TR absolute maximum ratings: (1)VCC to GND: -0.5V to 16.5V; (2)TTL Input Voltage: -0.5V to VCC + 0.5V; (3)VOUT: -0.5V to VCC + 0.5V; (4)REF: -0.5V to VCC + 0.5V; (5)Operating Temperature Range: 0℃ to 70℃; (6)Maximum Junction Temperature, Plastic Package: -65℃ to 125℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1257IS8#TR features: (1)8-Pin SO Package; (2)Buffered Voltage Output; (3)Built-In 2.048V Reference; (4)500mV/LSB with 2.048V Full Scale; (5)1/2LSB Max DNL Error; (6)Guaranteed 12-Bit Monotonic; (7)3-Wire Cascadable Serial Interface; (8)Wide Single Supply Range: VCC = 4.75V to 15.75V; (9)Low Power: ICC Typ = 350mA with 5V Supply.

Diagrams

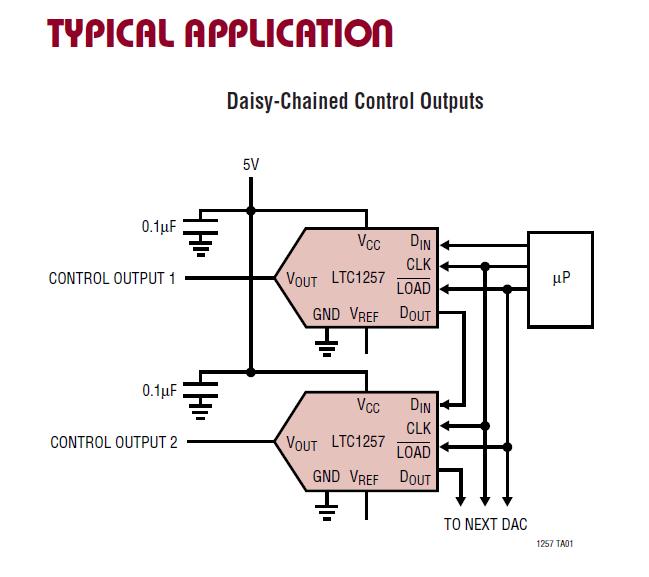

LTC1257IS8#TR block diagram
