Product Summary
The LTC1348CSW#TR is a 3-driver/5-receiver RS232 transceiver with very low supply current. The charge pump only requires five 0.1mF capacitors. The LTC1348CSW#TR provides full RS232 output levels when operated over a wide supply range of 3V to 5.5V The transceiver operates in one of four modes: Normal, Receiver Disable, Receiver Alive and Shutdown. In Normal or Receiver Disable mode, ICC is only 600mA at 3.3V and 800mA at 5V in the no load condition. The applications of the LTC1348CSW#TR include Notebook Computers, Palmtop Computers, Printers, Portable Instruments.
Parametrics
LTC1348CSW#TR absolute maximum ratings: (1)Supply Voltage (VCC): 6V; (2)Input Voltage, Driver: -0.3V to VCC + 0.3V; (3)Receiver: -25V to 25V; (4)Driver/Receiver Enable Pin: -0.3V to VCC + 0.3V; (5)Output Voltage, Driver: -25V to 25V; Receiver: -0.3V to VCC + 0.3V; (6)Short-Circuit Duration, V+: 30 sec; V–: 30 sec; (7)Driver Output: Indefinite; (8)Receiver Output: Indefinite.
Features
LTC1348CSW#TR features: (1)Low Supply Current: 600mA at 3.3V; (2)Supply Current in Shutdown: 0.2mA; (3)Supply Current in Receiver Alive Mode: 15mA; (4)ESD Protection over ±10kV; (5)Operates from a Single 3V to 5.5V Supply; (6)Operates to 120kBaud with 0.1mF Flying Capacitors; (7)Three-State Outputs Are High Impedance When Off; (8)Output Overvoltage Does Not Force Current Back into Supplies; (9)RS232 I/O Lines Can Be Forced to ±25V Without Damage; (10)Flowthrough Architecture.

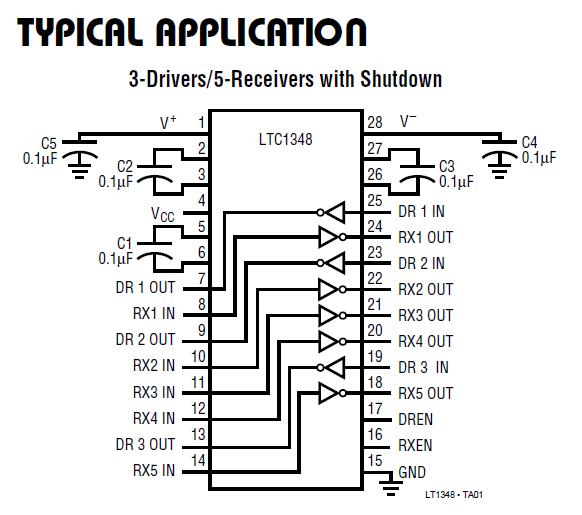

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1348CSW#TR |
|
IC TXRX RS232 3.3-5V LPWR 28SOIC |
Data Sheet |
|
|
||||||
|
LTC1348CSW#TRPBF |
|
IC TXRX 3.3V/5V RS232 28-SOIC |
Data Sheet |
|
|
||||||
