Product Summary
The LTC1453IS8#TR is a complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converter (DAC) in an SO-8 package. The device includes an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The LTC1453IS8#TR has an onboard reference of 2.048V and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply. The applications of the LTC1453IS8#TR include Digital Calibration, Industrial Process Control, Automatic Test Equipment, Cellular Telephones.
Parametrics
LTC1453IS8#TR absolute maximum ratings: (1)VCC to GND: -0.5V to 7.5V; (2)TTL Input Voltage: -0.5V to 7.5V; (3)VOUT, DOUT: -0.5V to VCC + 0.5V; (4)REF: -0.5V to VCC + 0.5V; (5)Maximum Junction Temperature: -65℃ to 125℃; (6)Operating Temperature Range, Commercial: 0℃ to 70℃; Industrial: -40℃ to 85℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1453IS8#TR features: (1)12-Bit Resolution; (2)Buffered True Rail-to-Rail Voltage Output; (3)3V Operation (LTC1453), ICC: 250mA Typ; (4)5V Operation (LTC1451), ICC: 400mA Typ; (5)3V to 5V Operation (LTC1452), ICC: 225mA Typ; (6)Built-In Reference: 2.048V (LTC1451) 1.220V (LTC1453); (7)Multiplying Version (LTC1452); (8)Power-On Reset; (9)SO-8 Package; (10)3-Wire Cascadable Serial Interface; (11)Maximum DNL Error: 0.5LSB; (12)Schmitt Trigger on Clock Input Allows Direct Optocoupler Interface.

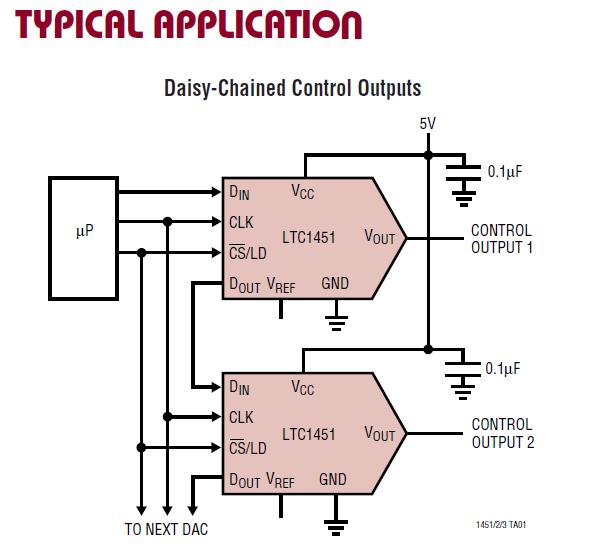

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1453IS8#TR |
|
IC DAC 12BIT R-R SINGLE 3V 8SOIC |
Data Sheet |
|
|
||||||
|
LTC1453IS8#TRPBF |
|
IC D/A CONV 12BIT R-R 8-SOIC |
Data Sheet |
|
|
||||||
