Product Summary

The LTC1484CS8#TR is a low power RS485 compatible transceiver. In receiver mode, it offers a fail-safe feature which guarantees a high receiver output state when the inputs are left open, shorted together or terminated with no signal present. No external components are required to ensure the high receiver output state. The applications of the LTC1484CS8#TR include Battery-Powered RS485/RS422 Applications, Low Power RS485/RS422 Transceiver, Level Translator.

Parametrics

LTC1484CS8#TR absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Control Input Voltages: -0.3V to (VCC + 0.3V); (3)Driver Input Voltage: -0.3V to (VCC + 0.3V); (4)Driver Output Voltages: -7V to 10V; (5)Receiver Input Voltages (Driver Disabled): -12V to 14V; (6)Receiver Output Voltage: -0.3V to (VCC + 0.3V); (7)Junction Temperature: 125℃; (8)Operating Temperature Range: 0℃ ≤ TA ≤ 70℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1484CS8#TR features: (1)No Damage or Latchup to ±15kV ESD (Human Body Model), IEC-1000-4-2 Level 4 Contact (±8kV) and Level 3 (±8kV) Air Gap Specifications; (2)Guaranteed High Receiver Output State for Floating, Shorted or Terminated Inputs with No Signal Present; (3)Drives Low Cost Residential Telephone Wires; (4)Low Power: ICC = 700mA Max with Driver Disabled; (5)ICC = 900mA Max for Driver Enable with No Load; (6)20mA Max Quiescent Current in Shutdown Mode; (7)Single 5V Supply; (8)–7V to 12V Common Mode Range Permits ±7V Ground Difference Between Devices on the Data Line; (9)Power Up/Down Glitch-Free Driver Outputs; (10)Up to 32 Transceivers on the Bus; (11)Pin Compatible with the LTC485; (12)Available in 8-Lead MSOP, PDIP and SO Packages.

Diagrams

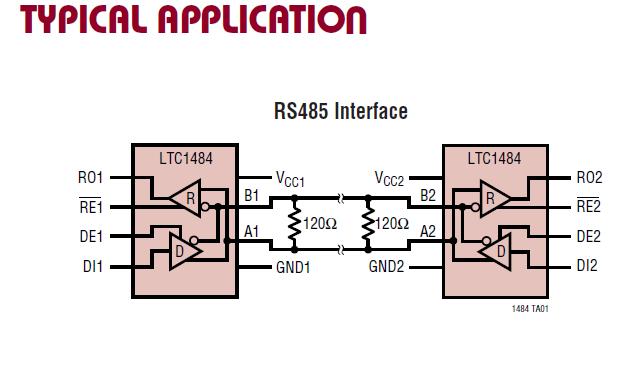

LTC1484CS8#TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC1484CS8#TR
LTC1484CS8#TR


IC TXRX RS485 LP FAILSAFE 8SOIC

Data Sheet

0-5000: $1.11
LTC1484CS8#TRPBF
LTC1484CS8#TRPBF


IC TXRX RS485 LOWPWR 8-SOIC

Data Sheet

0-2500: $1.11
