Product Summary
The LTC1563-3IGN#TR is an extremely easy-to-use, active RC lowpass filter with rail-to-rail inputs and outputs and low DC offset suitable for systems with a resolution of up to 16 bits. The LTC1563-3IGN#TR, with a single resistor value, gives a unity-gain Bessel response. The applications of the LTC1563-3IGN#TR include Discrete RC Active Filter Replacement, Antialiasing Filters, Smoothing or Reconstruction Filters, Linear Phase Filtering for Data Communication, Phase Locked Loops.
Parametrics
LTC1563-3IGN#TR absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 11V; (2)Maximum Input Voltage at Any Pin: (V- -0.3V) ≤ VPIN ≤ (V+ + 0.3V); (3)Power Dissipation: 500mW; (4)Operating Temperature Range: -40℃ to 85℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1563-3IGN#TR features: (1)Extremely Easy to Use—A Single Resistor Value Sets the Cutoff Frequency (256Hz < fC < 256kHz); (2)Extremely Flexible—Different Resistor Values Allow Arbitrary Transfer Functions with or without Gain (256Hz < fC < 256kHz); (3)Supports Cutoff Frequencies Up to 360kHz Using FilterCADTM; (4)LTC1563-2: Unity-Gain Butterworth Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain; (5)LTC1563-3: Unity-Gain Bessel Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain; (6)Rail-to-Rail Input and Output Voltages; (7)Operates from a Single 3V (2.7V Min) to ±5V Supply; (8)Low Noise: 36μVRMS for fC = 25.6kHz, 60μVRMS for fC = 256kHz; (9)fC Accuracy < ±2% (Typ); (10)DC Offset < 1mV; (11)Cascadable to Form 8th Order Lowpass Filters; (12)Available in Narrow SSOP-16 Package.

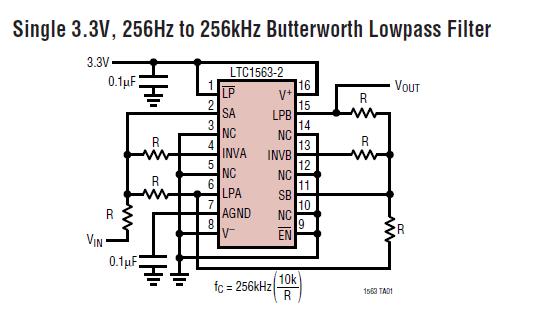

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1563-3IGN#TR |
|
IC FILTER LP RC 4TH ORDER 16SSOP |
Data Sheet |
|
|
||||||
|
LTC1563-3IGN#TRPBF |
|
IC FILTER LP RC 4TH ORDER 16SSOP |
Data Sheet |
|
|
||||||
