Product Summary

The LTC1659CS8#TR is a single supply, rail-to-rail voltage output, 12-bit digital-to-analog converter (DAC) in an MSOP package. It includes a rail-to-rail output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The LTC1659CS8#TR output swings from 0V to REF. The REF input can be tied to VCC which can range from 2.7V to 5.5V. This allows a rail-to-rail output swing from 0V to VCC. The LTC1659CS8#TR draws only 250mA from a 5V supply. The applications of the LTC1659CS8#TR include Digital Calibration, Industrial Process Control, Automatic Test Equipment, Cellular Telephones.

Parametrics

LTC1659CS8#TR absolute maximum ratings: (1)VCC to GND: -0.5V to 7.5V; (2)Logic Inputs to GND: -0.5V to 7.5V; (3)VOUT: -0.5V to VCC + 0.5V; (4)Maximum Junction Temperature: 125℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Operating Temperature Range: 0℃ to 70℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1659CS8#TR features: (1)8-Lead MSOP Package; (2)12-Bit Resolution; (3)Supply Operation: 3V to 5V; (4)Buffered True Rail-to-Rail Voltage Output; (5)Output Swings from 0V to VREF; (6)VREF Can Tie to VCC; (7)Schmitt Trigger On Clock Input Allows Direct Optocoupler Interface; (8)Power-On Reset Clears DAC to 0V; (9)3-Wire Cascadable Serial Interface; (10)Maximum DNL Error: 0.5LSB; (11)Low Cost.

Diagrams

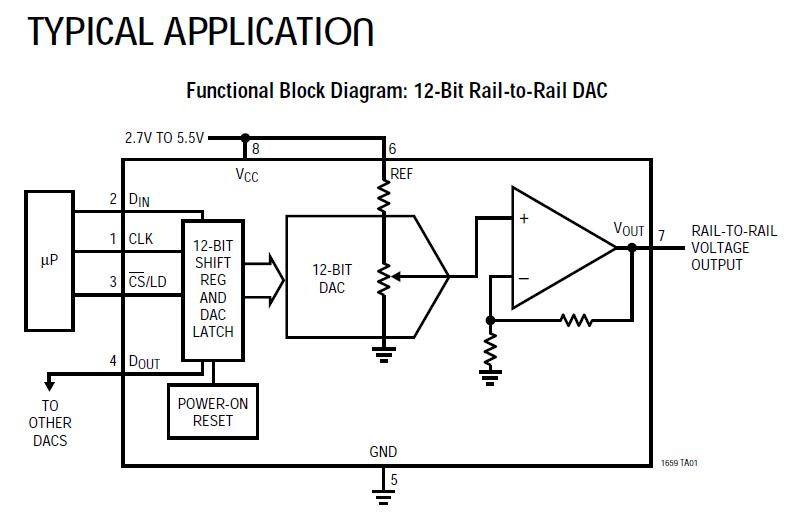

LTC1659CS8#TR block diagram
