Product Summary

The LTC1660CGN#TR is a 10-bit integrate eight accurate, serially addressable digital-to-analog converter (DAC) in tiny 16-pin narrow SSOP packages. The buffered DAC draws just 56μA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads to 1000pF. Sleep mode further reduces total supply current to 1μA. The applications of the LTC1660CGN#TR include Mobile Communications, Remote Industrial Devices, Automatic Calibration for Manufacturing, Portable Battery-Powered Instruments, Trim/Adjust Applications.

Parametrics

LTC1660CGN#TR absolute maximum ratings: (1)VCC to GND: -0.2V to 7.5V; (2)Logic Inputs to GND: -0.2V to 7.5V; (3)VOUT A, VOUT B to VOUT H,; (4)REF to GND: -0.2V to (VCC + 0.2V); (5)Maximum Junction Temperature: 125℃; (6)Operating Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1660CGN#TR features: (1)Tiny: 8 DACs in the Board Space of an SO-8; (2)Micropower: 56mA per DAC Plus 1mA Sleep Mode for Extended Battery Life; (3)Pin Compatible 8-Bit LTC1665 and 10-Bit LTC1660; (4)Wide 2.7V to 5.5V Supply Range; (5)Rail-to-Rail Voltage Outputs Drive 1000pF; (6)Reference Range Includes Supply for Ratiometric 0V-to-VCC Output; (7)Reference Input Impedance is Constant—Eliminates External Buffer.

Diagrams

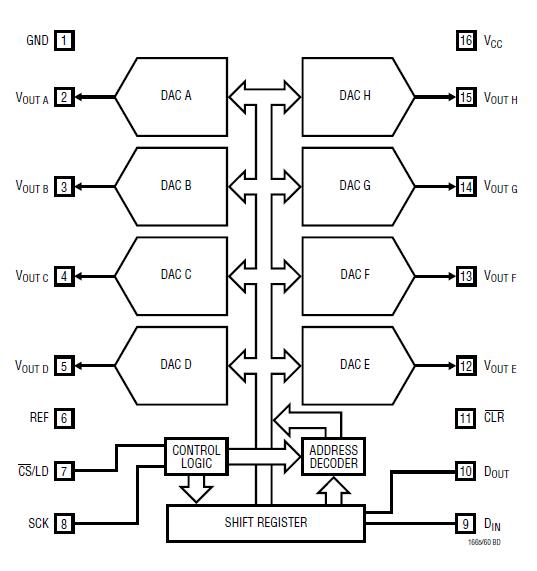

LTC1660CGN#TR block diagram
