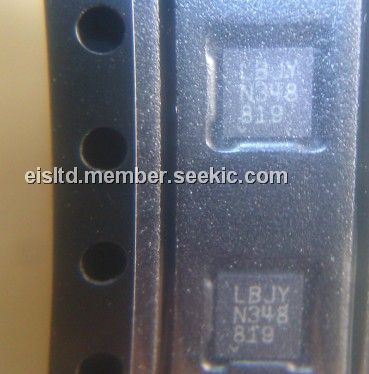

LTC2480IDD#PBF

LTC2480IDD#PBF, 16-Bit ADC, QFN, 6V, 100nA, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~2.90

PartNumber:: LTC2480IDD#PBF

Brand:: Linear Technology - Linear | Pack: QFN | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-24

From Other Seller

Part Number:LTC2480IDD#PBF
US $2.00 - 2.90
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

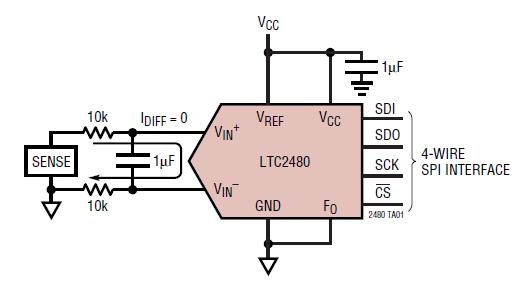

The LTC2480IDD#PBF is a 16-bit ADC with easy drive. The LTC2480IDD#PBF combines a 16-bit plus sign No Latency Δ∑ TM analog-to-digital converter with patented Easy Drive TM technology. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and input signals, with rail-to-rail input range to be directly digitized while maintaining exceptional DC accuracy. The LTC2480IDD#PBF includes on-chip programmable gain, a temperature sensor and an oscillator. The applications of the LTC2480IDD#PBF include Direct Sensor Digitizer, Weight Scales, Direct Temperature Measurement, Strain Gauge Transducers, Instrumentation, Industrial Process Control, DVMs and Meters.

Parametrics

LTC2480IDD#PBF absolute maximum ratings: (1)Supply Voltage (VCC) to GND: -0.3V to 6V; (2)Analog Input Voltage to GND: -0.3V to (VCC + 0.3V); (3)Reference Input Voltage to GND: -0.3V to (VCC + 0.3V); (4)Digital Input Voltage to GND: -0.3V to (VCC + 0.3V); (5)Digital Output Voltage to GND: -0.3V to (VCC + 0.3V); (6)Operating Temperature Range: -40℃ to 85℃; (7)Storage Temperature Range: -65℃ to 125℃.

Features

LTC2480IDD#PBF features: (1)Easy Drive Technology Enables Rail-to-Rail Inputs with Zero Differential Input Current; (2)Directly Digitizes High Impedance Sensors with Full Accuracy; (3)Programmable Gain from 1 to 256; (4)Integrated Temperature Sensor; (5)GND to VCC Input/Reference Common Mode Range; (6)Programmable 50Hz, 60Hz or Simultaneous 50Hz/60Hz Rejection Mode; (7)2ppm (0.25LSB) INL, No Missing Codes; (8)1ppm Offset and 15ppm Full-Scale Error; (9)Selectable 2x Speed Mode (15Hz Using Internal Oscillator); (10)No Latency: Digital Filter Settles in a Single Cycle; (11)Single Supply 2.7V to 5.5V Operation; (12)Internal Oscillator; (13)Available in a Tiny (3mm × 3mm) 10-Lead DFN Package.
