Product Summary
The LTC2901-1CGN#TR is a programmable supply monitor for systems with up to four supply voltages. One of 16 preset or adjustable voltage monitor combinations can be selected using an external resistor divider connected to the program pin. The preset voltage thresholds are accurate to 1.5% over temperature. All four voltage comparator outputs are connected to separate pins for individual supply monitoring. The applications of the LTC2901-1CGN#TR are (1)desktop and notebook computers; (2)multivoltage systems; (3)telecom equipment; (4)portable battery-powered equipment; (5)network servers.
Parametrics
LTC2901-1CGN#TR absolute maximum ratings: (1)V1, V2, V3, V4, VPG : – 0.3V to 7V; (2)RST (LTC2901-1): – 0.3V to 7V; (3)RST (LTC2901-2): – 0.3V to (V2 + 0.3V); (4)COMPX : – 0.3V to 7V; (5)CWT, WDO: – 0.3V to 7V; (6)VREF, CRT, WDI : – 0.3V to (VCC + 0.3V); (7)Reference Load Current (IVREF): ±1mA; (8)V4 Input Current (–ADJ Mode): –1mA; (9)Operating Temperature Range: 0°C to 70°C; (10)Storage Temperature Range : –65°C to 150°C; (11)Lead Temperature (Soldering, 10 sec): 300°C.
Features
LTC2901-1CGN#TR features: (1)Simultaneously Monitors Four Supplies; (2)16 User Selectable Combinations of 5V, 3.3V, 3V, 2.5V, 1.8V, 1.5V and/or ±Adjustable Voltage Thresholds; (3)Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature; (4)Low Supply Current: 43mA Typ; (5)Adjustable Reset Time; (6)Adjustable Watchdog Time; (7)Open-DraiRST Output (LTC2901-1); (8)Push-Pull RST Output (LTC2901-2); (9)Individual Nondelayed Monitor Output for Each Supply; (10)Power Supply Glitch Immunity; (11)Guaranteed RST for VCC 1V.

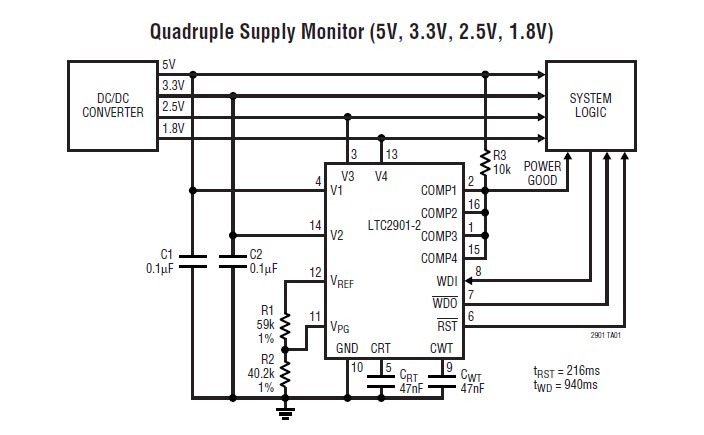

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC2901-1CGN#TR |
|
IC MONITOR SUPPLY QUAD 16-SSOP |
Data Sheet |
|
|
||||||
|
LTC2901-1CGN#TRPBF |
|
IC MONITOR SUPPLY QUAD 16-SSOP |
Data Sheet |
|
|
||||||
