Product Summary

The LTC488CSW#TR is a low power differential bus/ line receiver designed for multipoint data transmission standard RS485 applications with extended common mode range (12V to –7V). The LTC488CSW#TR also meets the requirements of RS422. The CMOS design offers significant power savings over its bipolar counterpart without sacrificing ruggedness against overload or ESD damage. The LTC488CSW#TR features three-state outputs, with the receiver output maintaining high impedance over the entire common mode range. The applications of the LTC488CSW#TR are (1)low power RS485/RS422 receivers; (2)level translator.

Parametrics

LTC488CSW#TR absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Currents: – 25mA to 25mA; (3)Control Input Voltages: – 0.5V to (VCC + 0.5V); (4)Receiver Input Voltages: ±14V; (5)Receiver Output Voltages: – 0.5V to (VCC + 0.5V); (6)Operating Temperature Range: 0°C to 70°C; (7)Storage Temperature Range: –65°C to 150°C; (8)Lead Temperature (Soldering, 10 sec): 300°C.

Features

LTC488CSW#TR features: (1)Low Power: ICC = 7mA Typ; (2)Designed for RS485 or RS422 Applications; (3)Single 5V Supply; (4)– 7V to 12V Bus CommoMode Range Permits ±7V Ground Difference BetweeDevices othe Bus; (5)60mV Typical Input Hysteresis; (6)Receiver Maintains High Impedance iThree-State or with the Power Off; (7)28ns Typical Receiver PropagatioDelay; (8)PiCompatible with the SN75173 (LTC488); (9)PiCompatible with the SN75175 (LTC489).

Diagrams

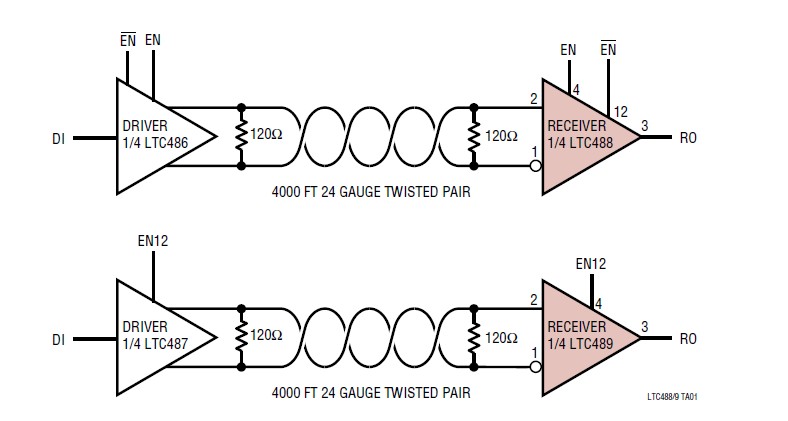

LTC488CSW#TR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC488CSW#TR
LTC488CSW#TR


IC DRIVER RS485 QUAD LP 16SOIC

Data Sheet

0-2000: $2.58
LTC488CSW#TRPBF
LTC488CSW#TRPBF


IC LINE RCVR RS485 QUAD 16-SOIC

Data Sheet

0-1000: $2.58
