Product Summary
The M27C1001-12F1 is a 1 Mbit EPROM offered in the two ranges: UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organized as 131,072 words of 8 bits. For applications where the content is programmed only one time and erasure is not required, the M27C1001-12F1 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
M27C1001-12F1 absolute maximum ratings: (1)Ambient Operating Temperature, TA: -40 to 125℃; (2)Temperature Under Bias, TBIAS: -50 to 125℃; (3)Storage Temperature, TSTG: -65 to 150℃; (4)Input or Output Voltage, VIO: -2 to 7 V; (5)Supply Voltage, VCC: -2 to 7 V; (6)A9 Voltage, VA9: -2 to 13.5 V; (7)Program Supply Voltage, VPP: -2 to 14 V.
Features
M27C1001-12F1 features: (1)5v ± 10% Supply Voltage in Read Operation; (2)Access Time: 35ns; (3)Low Power Consumption: Active Current: 30 mA at 5 MHz; Standby Current: 100 μA; (4)Programming Voltage: 12.75V ± 0.25V; (5)Programming Time: 100 μs/word; (6)Electronic Signature: Manufacturer Code: 20h; Device Code: 05h; (7)ecopackr packages available.

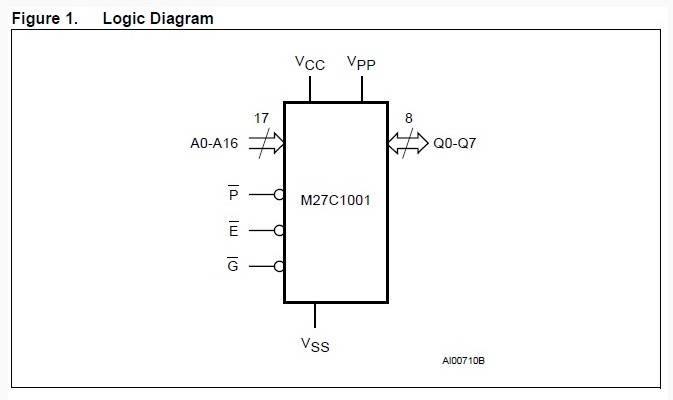

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C1001-12F1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
