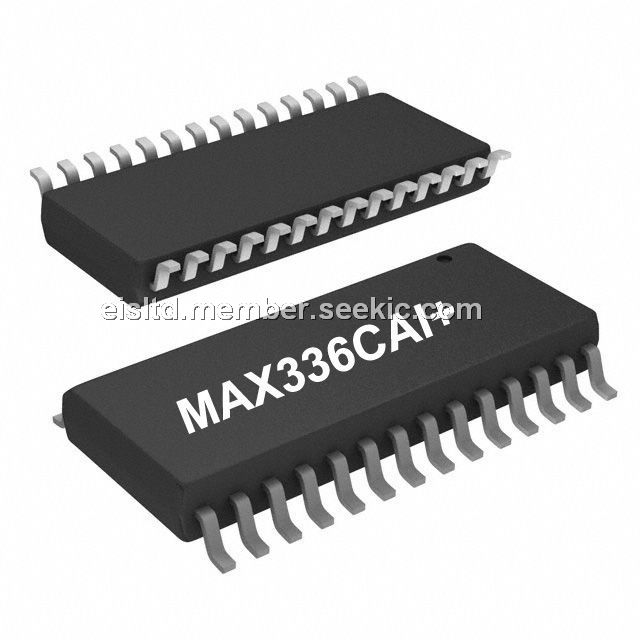

MAX336CAI+T

monolithic, CMOS analog multiplexer, SSOP-28, 16-channel, 400Ω, Bidirectional Rail-to-Rail, 100mA, 44V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.15~4.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.15~4.20

PartNumber:: MAX336CAI+T

Brand:: Maxim Integrated Products - Maxim | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-07

From Other Seller

Part Number:MAX336CAI+T
US $3.15 - 4.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX336CAI+T is a monolithic, CMOS analog multiplexer. The 16-channel MAX336CAI+T is designed to connect one of 16 inputs to a common out-put by control of a 4-bit binary address. The MAX336CAI+T can be used as either a mux or a demux. On-resistance is 400Ω (max), and the devices conduct current equally well in both directions. The applications of the MAX336CAI+T inlcude Precision Data Acquisition, Precision Signal Routing and Test Equipment.

Parametrics

MAX336CAI+T absolute maximum ratings: (1)Voltage Referenced to V-V+: -0.3V, 44V; (2)GND: -0.3V, 25V; (3)Digital Inputs, A_, EN_, NO, COM: (V- - 0.3V) to (V+ + 0.3V) or 30mA (whichever occurs first); (4)Continuous Current (any terminal): 30mA; (5)Peak Current, NO or COM (pulsed at 1ms, 10% duty cycle max): 100mA; (6)Continuous Power Dissipation: 1.14W; (7)Operating Temperature Ranges: 0 to +70℃; (8)Storage Temperature Range: -65 to +150℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX336CAI+T features: (1)<400Ω (max) On-Resistance ; (2)<500ns Transition Time; (3)<10Ω On-Resistance Match; (4)<20pA NO-Off Leakage Current at +25℃; (5)3.5pC Charge Injection; (6)+4.5V to +30V Single Supply; ±4.5V to ±20V Dual Supplies; (7)Plug-In Upgrade for Industry-Standard DG506/DG507; (8)Bidirectional Rail-to-Rail; (9)Signal Handling; (10)TTL/CMOS-Logic Compatible; (11)>2000V ESD Protection, per Method 3015.7.
