Product Summary

The M93C56-WMN6T is a microwire serial access eeprom. The M93C56-WMN6T is accessed through a Serial Data Input (D) and Serial Data Output (Q) using the MICROWIRE bus protocol. In order to meet environmental requirements, ST offers the M93C56-WMN6T in ECOPACK packages. ECOPACK packages are Lead-free and RoHS compliant. ECOPACK is an ST trademark.

Parametrics

M93C56-WMN6T absolute maximum ratings: (1)TA Ambient Operating Temperature: –40 to 130 °C; (2)TSTG Storage Temperature: –65 to 150 °C; (3)TLEAD PDIP-Specific Lead Temperature during Soldering: 260°C; (4)VOUT Output range (Q = VOH or Hi-Z): –0.50 to VCC+0.5 V; (5)VIN Input range: –0.50 to VCC+1 V; (6)VCC Supply Voltage: –0.50 to 6.5 V; (7)VESD Electrostatic Discharge Voltage (Human Body model): –4000 to 4000 V.

Features

M93C56-WMN6T features: (1)Industry Standard MICROWIRE Bus; (2)Dual Organization: by Word (x16)or Byte (x8); (3)Programming Instructions that work on: Byte, Word or Entire Memory; (4)Self-timed Programming Cycle with Auto- Erase: 5ms; (5)Ready/Busy Signal During Programming; (6)2MHz Clock Rate; (7)Sequential Read Operation; (8)Enhanced ESD/Latch-Up Behavior; (9)More than 1 Million Erase/Write Cycles; (10)More than 40 Year Data Retention; (11)Packages: ECOPACK (RoHS compliant).

Diagrams

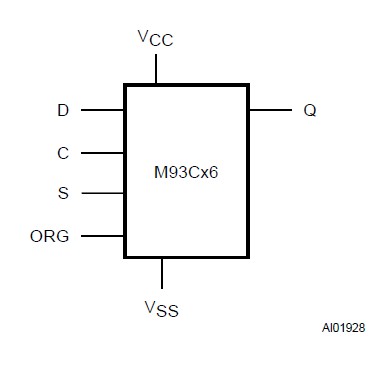

M93C56-WMN6T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M93C56-WMN6T
M93C56-WMN6T

STMicroelectronics

EEPROM 2K (256x8 or 128x16)

Data Sheet

Negotiable
M93C56-WMN6TP
M93C56-WMN6TP

STMicroelectronics

EEPROM 2.5 V to 5.5 V 2K

Data Sheet

0-1: $0.34
1-10: $0.26
10-100: $0.22
100-250: $0.19
