MAX663ESA+T

MAX663ESA+T, Programmable Vicropower Voltage Regulator, SOIC-8, 5V, 50mA, Maxim Integrated

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~2.00

PartNumber:: MAX663ESA+T

Brand:: Maxim Integrated Products - Maxim | Pack: SO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-19

From Other Seller

Part Number:MAX663ESA+T
US $1.20 - 2.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

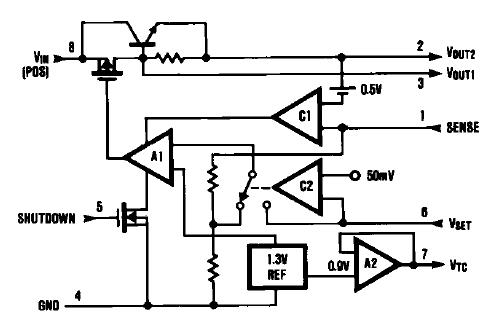

The MAX663ESA+T is a programmable vicropower voltage regulator. The MAX663ESA+T has a maximum quiescent current of 12μA. The device can be used either as 5V, fixed output regulator with no additional components, or can be adjusted from 1.3V to 16V using two external resisitors. Fixed or adjustable operation is automatically selected via the VSET input. The MAX663ESA+T is ideally suited for battery powered systems, has an input voltage range of 2 to 16.5V, an output current capability of 40mA, and can operate with low input-output differentials. Other features include current limiting and low power shut down. The applications of the the MAX663ESA+T include handheld instruments, LCD display systems, pages, remote data acquisition and telemetry, Radio controlled devices, Long-life battery powered systems.

Parametrics

MAX663ESA+T absolute maximum ratings: (1)Input supply voltage: +18V; (2)Terminal voltage: GND -0.3V to VOUT +0.3V; (3)Output source current: 50mA; (4)Output sink current: -20mA; (5)Power disspation, plastic DIP: 625Mw; small outline: 450mW; CERDIP: 800mW; (6)Operating temperature range: -40℃ to +85℃; (7)Storage temperature: -65℃ to +150℃; (8)Lead temperature(Soldering 10 seconds): +300℃.

Features

MAX663ESA+T features: (1)Dual mode operate: fixed +5V or adjustable from +1.3V to +16V; (2)Low power CMOS: 12μA Max qulescent current; (3)40mA output current, with current limiting; (4)Pin-compatible upgrade of ICL7663 and ICL7663; (5)+2V to +16.5V operating range; (6)No output over-shool on power up.
