Product Summary
The MC10EL01DR2 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E101, the MC10EL01DR2 is ideally suited for those applications which require the ultimate in AC performance.
Parametrics
MC10EL01DR2 absolute maximum ratings: (1)VCC PECL Mode Power Supply VEE = 0 V: 8 to 0 V; (2)VEE NECL Mode Power Supply VCC = 0 V: -8 to 0 V; (3)VI PECL Mode Input Voltage VEE = 0 V VI ≤ VCC: 6 to 0V; (4)NECL Mode Input Voltage VCC = 0 V VI ≤ VEE: -6 to 0V; (5)Iout Output Current Continuous: 50mA; (6)Iout Output Current Surge: 100mA; (7)TA Operating Temperature Range: -40 to +85℃; (8)Tstg Storage Temperature Range: -65 to +150℃; (9)θJA Thermal Resistance (Junction to Ambient): 0 lpfm 190℃/W, 500 lpfm 130℃/W; (10)θJC Thermal Resistance (Junction to Case) Standard Board: 41 to 44 ± 5% ℃/W; (11)θJA Thermal Resistance (Junction to Ambient): 0 lpfm 185℃/W, 500 lpfm 140℃/W; (12)θJC Thermal Resistance (Junction to Case) Standard Board: 41 to 44 ± 5% ℃/W; (13)θJA Thermal Resistance (Junction to Ambient): 0 lfpm 129℃/W, 500 lfpm 84℃/W; (14)Tsol Wave Solder Pb <2 to 3 sec @ 248℃: 265℃; (15)Tsol Wave Solder Pb-Free <2 to 3 sec @ 260℃: 265℃.
Features
MC10EL01DR2 features: (1)230 ps Propagation Delay; (2)ESD Protection: > 1 kV Human Body Model, > 100 V Machine Model; (3)PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V; (4)NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V; (5)Internal Input Pulldown Resistors; (6)Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; (7)Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D; (8)Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index: 28 to 34; (9)Transistor Count = 46 devices; (10)Pb-Free Packages are Available.

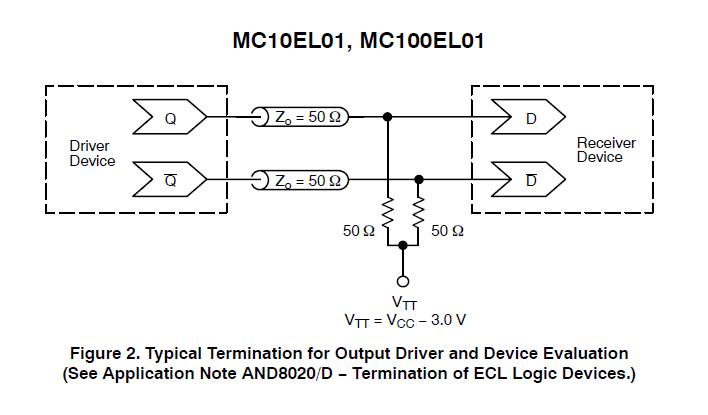

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC10EL01DR2 |
|
IC GATE OR/NOR ECL 4INPUT 8-SOIC |
Data Sheet |
|
|
||||||
|
MC10EL01DR2G |
|
IC GATE OR/NOR ECL 4INPUT 8-SOIC |
Data Sheet |
|
|
||||||
