MC10EL12DR2

Product Summary

The MC10EL12DR2 is a low impedance drive buffer. With two pairs of OR/NOR outputs the device is ideally suited for high drive applications such as memory addressing. The device is a function equivalent to the E112 device with higher performance capabilities. With propagation delays significantly faster than the E112, the MC10EL12DR2 is ideally suited for those applications which require the ultimate in AC performance.

Parametrics

MC10EL12DR2 absolute maximum ratings: (1)VCC PECL Mode Power Supply VEE = 0 V: 8 to 0 V; (2)VEE NECL Mode Power Supply VCC = 0 V: -8 to 0 V; (3)VI PECL Mode Input Voltage VEE = 0 V VI ≤ VCC: 6 to 0V; (4)NECL Mode Input Voltage VCC = 0 V VI ≤ VEE: -6 to 0V; (5)Iout Output Current Continuous: 50mA; (6)Iout Output Current Surge: 100mA; (7)TA Operating Temperature Range: -40 to +85℃; (8)Tstg Storage Temperature Range: -65 to +150℃; (9)θJA Thermal Resistance (Junction to Ambient): 0 lpfm 190℃/W, 500 lpfm 130℃/W; (10)θJC Thermal Resistance (Junction to Case) Standard Board: 41 to 44 ± 5% ℃/W; (11)θJA Thermal Resistance (Junction to Ambient): 0 lpfm 185℃/W, 500 lpfm 140℃/W; (12)θJC Thermal Resistance (Junction to Case) Standard Board: 41 to 44 ± 5% ℃/W; (13)θJA Thermal Resistance (Junction to Ambient): 0 lfpm 129℃/W, 500 lfpm 84℃/W; (14)Tsol Wave Solder Pb <2 to 3 sec @ 248℃: 265℃; (15)Tsol Wave Solder Pb-Free <2 to 3 sec @ 260℃: 265℃.

Features

MC10EL12DR2 features: (1)290 ps Propagation Delay; (2)Dual Outputs for 25 Ω Drive Applications; (3)ESD Protection: Human Body Model; > 1.0 kV Machine Model; > 100 V; (4)PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V; (5)NECL Mode Operating Range: VCC = 0 V with VEE = -4.2V to - 5.7V; (6)Internal Input Pulldown Resistors; (7)Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; (8)Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D; (9)Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index: 28 to 34; (10)Transistor Count = 44 devices; (11)Pb-Free Packages are Available.

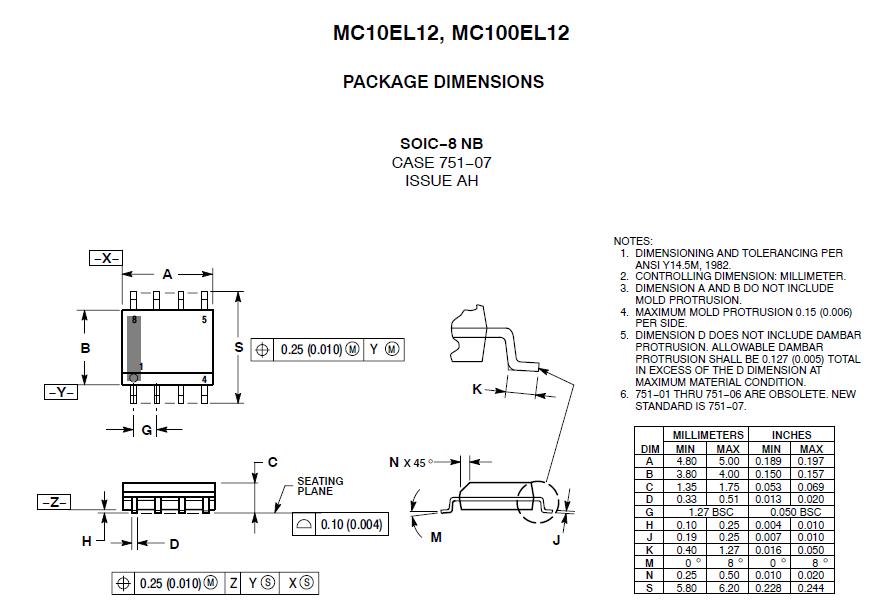

Diagrams
