Product Summary
The MC33039P is a high performance closed–loop speed control adapter specifically designed for use in brushless DC motor control systems. Implementation will allow precise speed regulation without the need for a magnetic or optical tachometer. The MC33039P contains three input buffers each with hysteresis for noise immunity, three digital edge detectors, a programmable monostable, and an internal shunt regulator. Also included is an inverter output for use in systems that require conversion of sensor phasing. Although the MC33039P is primarily intended for use with the MC33035 brushless motor controller, it can be used cost effectively in many other closed–loop speed control applications.
Parametrics
MC33039P absolute maximum ratings: (1)VCC Zener Current IZ(VCC): 30 mA; (2)Logic Input Current (Pins 1, 2, 3) IIH: 5.0 mA; (3)Output Current (Pins 4, 5), Sink or Source IDRV: 20 mA; (4)Power Dissipation and Thermal Characteristics Maximum Power Dissipation @ TA = + 85℃ PD 650 mW, Thermal Resistance, Junction–to–Air RqJA 100℃/W; (5)Operating Junction Temperature TJ: + 150 ℃; (6)Operating Ambient Temperature Range TA: – 40 to + 85 ℃; (7)Storage Temperature Range Tstg: – 65 to + 150℃.
Features
MC33039P features: (1)Digital Detection of Each Input Transition for Improved Low Speed Motor Operation; (2)TTL Compatible Inputs With Hysteresis; (3)Operation Down to 5.5 V for Direct Powering from MC33035 Reference; (4)Internal Shunt Regulator Allows Operation from a Non-regulated Voltage Source; (5)Inverter Output for Easy Conversion Sensor Phasing Conventions.

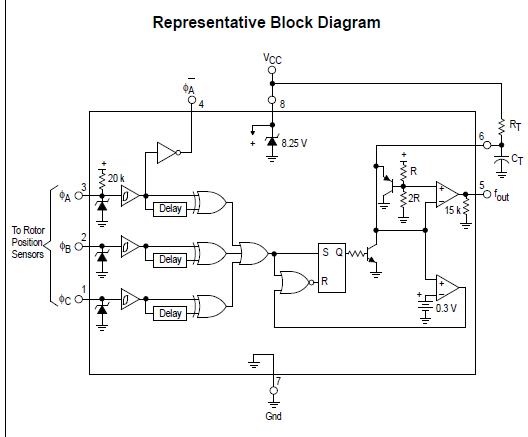

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33039P |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Brushless Closed |
Data Sheet |
Negotiable |
|
||||
|
MC33039PG |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Brushless Closed Loop Motor Adaptor |
Data Sheet |
Negotiable |
|
||||
