MC3303PT

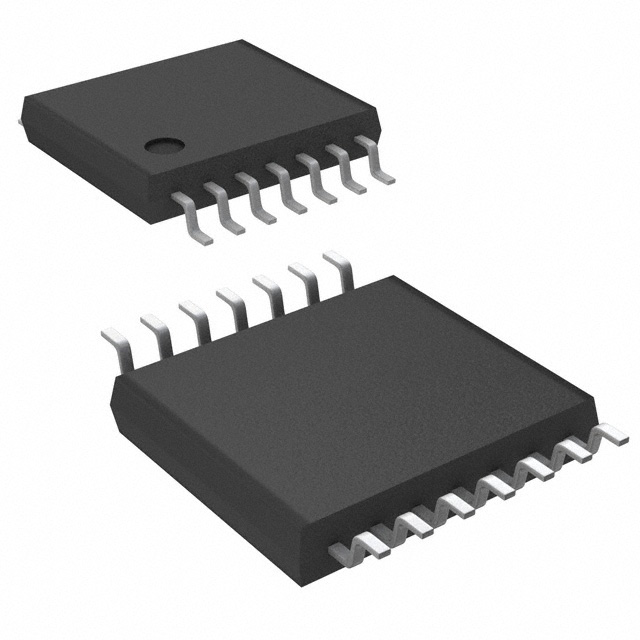

low power quad bipolar operational amplifier, 14TSSOP, MC3303PT, ±18 V, 500 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: MC3303PT

Brand:: ON Semiconductor - ON | Pack: TSSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MC3303PT
US $0.15 - 2.40
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC3303PT is a low-cost, quad operational amplifier with true differential inputs. The device has electrical characteristics similar to the popular UA741. However the MC3303PT, has several distinct advantages over standard operational amplifiers types in single supply applications. The quad amplifier can operate at supply voltage as low as 3 Volts or as high as 36 volts with quiescent currents about one third of those associated with the UA741 (on a per amplifier basis). The common-mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications.

Parametrics

MC3303PT absolute maximum ratings: (1)VCC Supply voltage: ±18 or 36 V; (2)Vi Input Voltage: ±18 V; (3)Vid Differential Input Voltage: ±36 V; (4)Output Short-circuit Duration: Infinite; (5)Ptot Power Dissipation: 500 mW; (6)Toper Operating Free-air Temperature Range: -40 to +105 ℃; (7)Tstg Storage Temperature Range: -65 to +150 ℃.

Features

MC3303PT feature: (1)short-circuit protected outputs; (2)class ab output stage for minimal crossover distortion; (3)single supply operation: +3V to +36V; (4)dual supplies: ±15V TO ±18V; (5)low input bias current: 500nA MAX; (6)internally compensated; (7)similar performance to popular UA741.
