Product Summary

The MC33079D is a high quality monolithic amplifier, which is employing bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. The MC33079D incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, wxcellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance. The MC33079D offers both dual and quad amplifier versions, tested over the automotive temperature range and available in the plastic SOIC package.

Parametrics

MC33079D absolute maximum ratings: (1)Supply voltage VS: +36 V; (2)Output short circuit duration tSC: indefinite; (3)Maximum junction temperature TJ: +150℃; (4)Storage temperature Tstg: -60℃ to 150℃.

Features

MC33079D features: (1)dual supply operation: ±5.0 V to ±18 V; (2)low voltage noise: 4.5 nV/√Hz; (3)low input offset voltage: 0.15 mV; (4)low T. C. of input offset voltage: 2.0μV/℃; (5)low total harmonic distortion: 0.002%; (6)high gain bandwidth product: 16 MHz; (7)high slew rate: 7.0 V/μs; (8)high open loop AC gain: 800 @ 20 kHz; (9)excellent frequency stabilit; (10)large output voltage swing: +14.1 V/-14.6 V; (11)ESD diodes provided on the inputs.

Diagrams

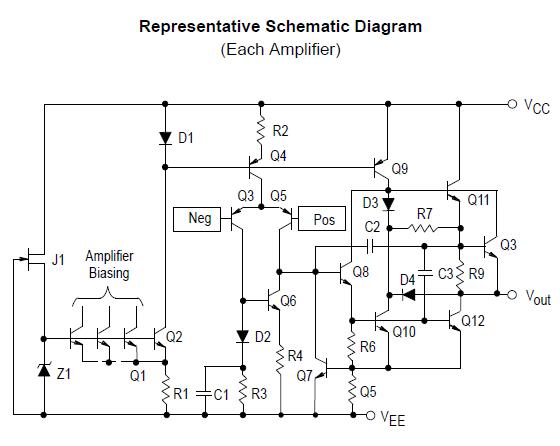

MC33079D block diagram
