Product Summary
The MC33269DR2G is a low dropout, medium current, fixed and adjustable, positive voltage regulators specifically designed for use in low input voltage applications. The MC33269DR2G offers the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum. The regulator consists of a 1.0 V dropout composite PNP-NPN pass transistor, current limiting, and thermal shutdown.
Parametrics
MC33269DR2G absolute maximum ratings: (1)Power Supply Input Voltage Vin: 20 V; (2)Power Dissipation TA = 25℃ PD: Internally Limited; (3)Thermal Resistance, Junction-to-Ambient θJA: 160 ℃/W; (4)Thermal Resistance, Junction-to-Case θJC: 25 ℃/W; (5)Operating Die Junction Temperature Range TJ: -40 to +150 ℃; (6)Operating Ambient Temperature Range TA: -40 to +125℃; (7)Storage Temperature Tstg: -55 to +150 ℃; (8)Electrostatic Discharge Sensitivity Human Body Model (HBM): 4000 V; (9)Electrostatic Discharge Sensitivity Machine Model (MM): 400 V.
Features
MC33269DR2G features: (1)3.3 V, 5.0 V, 12 V and Adjustable Versions; (2)Space Saving DPAK, SOP-8 and SOT-223 Power Packages; (3)1.0 V Dropout; (4)Output Current in Excess of 800 mA; (5)Thermal Protection; (6)Short Circuit Protection; (7)Output Trimmed to 1.0% Tolerance; (8)Pb-Free Package is Available.

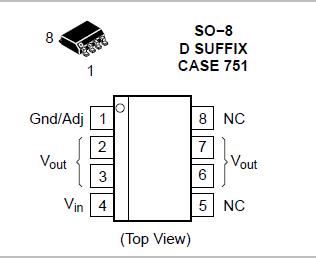

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33269DR2G |
ON Semiconductor |
Low Dropout (LDO) Regulators ANA 0.8A ADJ OUT LDO REG |
Data Sheet |
|
|
||||||||||||
