Product Summary
The MIC2026-1YM is a high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2026-1YM is internally current limited and has thermal shutdown that protects the device and load. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. The MIC2026-1YM employs soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is asserted during overcurrent and thermal shutdown conditions. Transient faults are internally filtered. The MIC2026-1YM is available in 8-lead SOP.
Parametrics
MIC2026-1YM absolute maximum ratings: (1)Supply Voltage (VIN): –0.3V to +6V; (2)Fault Flag Voltage (VFLG): +6V; (3)Fault Flag Current (IFLG): 25mA; (4)Output Voltage (VOUT): +6V; (5)Output Current (IOUT): Internally Limited; (6)Enable Input (IEN): –0.3V to VIN + 3V; (7)Storage Temperature (TS): –65℃ to +150 ℃.
Features
MIC2026-1YM features: (1)140mΩ maximum on-resistance per channel; (2)2.7V to 5.5V operating range; (3)500mA minimum continuous current per channel; (4)Short-circuit protection with thermal shutdown; (5)Thermally isolated channels; (6)Fault status flag with 3ms filter eliminates false assertions; (7)Undervoltage lockout; (8)Reverse current flow blocking (no "body diode"); (9)Logic-compatible inputs; (10)Soft-start circuit; (11)Low quiescent current Pin-compatible.

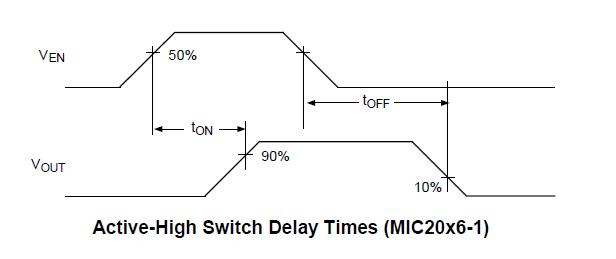

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2026-1YM |
|
IC DISTRIBUTION SW DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||||||
|
MIC2026-1YM TR |
|
IC SW DISTRIBUTION 2CHAN 8SOIC |
Data Sheet |
|
|
||||||||||||||
