Product Summary

The MIC2545A-1YM is an integrated high-side power switch optimized for low-loss DC power switching and other power-management applications, including advanced configuration and power interface (ACPI). The MIC2545A-1YM is a cost-effective, highly-integrated solution that requires few external components to satisfy USB and ACPI requirements. Load current management features include a precision, resistor-programmable output current-limit and a soft-start circuit, which minimizes inrush current when the MIC2545A-1YM is enabled. Thermal shutdown, along with adjustable currentlimit, protects the switch and the attached device. The MIC2545A-1YM applications are: (1)USB power distribution; (2)PCI Bus Power Switching; (3)Notebook PC; (4)ACPI power distribution; (5)PC card hot swap applications; (6)Inrush current limiting.

Parametrics

MIC2545A-1YM absolute maximum ratings: (1)Supply Voltage (VIN): +7.0V; (2)Output Voltage (VOUT): +7.0V; (3)Output Current (IOUT): Internally Limited; (4)Enable Input (VEN): -0.3V to +7V; (5)Fault Flag Voltage (VFLG): +7.0V; (6)Fault Flag Current (IFLG): 50mA; (7)Storage Temperature (Ts): –65℃ to +150℃; (8)Junction Temperature (TJ): Internally Limited; (9)Lead Temperature (soldering, 5sec.): 260℃; (10)ESD Rating(3): 1500V.

Features

MIC2545A-1YM features: (1)2.7V to 5.5V input; (2)Adjustable current-limit up to 3A; (3)Reverse current flow blocking; (4)90uA typical on-state supply current; (5)1uA typical off-state supply current; (6)50mΩ maximum on-resistance; (7)Open-drain fault flag; (8)Thermal shutdown; (9)Thermal-shutdown output latch (MIC2549A); (10)2ms (slow)soft-start turn-on, fast turnoff; (11)Available with active-high or active-low enable.

Diagrams

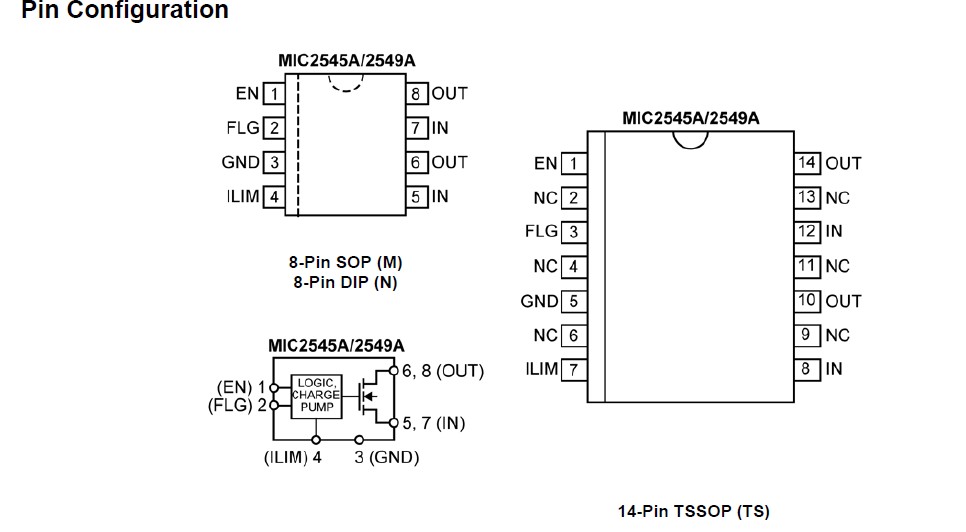

 MIC2545A-1YM pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC2545A-1YM
MIC2545A-1YM


IC SW CURR LIMIT HI SIDE 8-SOP

Data Sheet

0-1: $1.65
1-25: $1.32
25-100: $1.02
100-250: $0.97
250-500: $0.95
MIC2545A-1YM TR
MIC2545A-1YM TR


IC SW CURR LIMIT HI SIDE 8-SOP

Data Sheet

0-2500: $0.92
