Product Summary
The MIC2562A-0BM is a pcmcia/cardbus socket power controller which handles all PC Card slot power supply pins, both VCC and VPP. The MIC2562A-0BM switches between the three VCC voltages (0V, 3.3V and 5.0V) and the VPP voltages (OFF, 0V, 3.3V, 5V, or 12.0V) required by PC Cards. The MIC2562A-0BM switches voltages from the system power supply to VCC and VPP. Output voltage is selected by two digital inputs each and output current ranges up to 1A for VCC and 250mA for VPP. The MIC2562A-0BM provides power management capability controlled by the PC Card logic controller. The MIC2562A-0BM applications are: (1)PC Card Power Supply Pin Voltage Switch; (2)CardBus Slot Power Supply Control; (3)Data Collection Systems; (4)Machine Control Data Input Systems; (5)Wireless Communications; (6)Bar Code Data Collection Systems; (7)Instrumentation Configuration/Datalogging; (8)Docking Stations (portable and desktop); (9)Power Supply Management; (10)Analog Power Switching.
Parametrics
MIC2562A-0BM absolute maximum ratings: (1)Power Dissipation, TAMBIENT ≤25℃, Internally Limited SOIC : 800 mW; (2)Derating Factors (To Ambient)SOIC : 4 mW/℃; (3)Storage Temperature : －65℃ to +150℃; (4)Operating Temperature (Die): 125℃; (5)Lead Temperature (5 sec): 260℃.
Features
MIC2562A-0BM features: (1)High Efficiency, Low Resistance Switches Require No 12V Bias Supply; (2)No External Components Required; (3)Output Current Limit and Overtemperature Shutdown; (4)Open Drain Flag for Error Condition Indication; (5)Ultra Low Power Consumption; (6)Complete PC Card/CardBus VCC and VPP Switch Matrix in a Single Package; (7)Logic Compatible with Industry Standard PC Card Logic Controllers; (8)No Voltage.

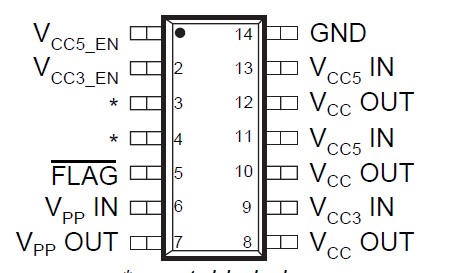

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2562A-0BM |
|
IC CTRLR PCMCIA CARDBUS 14SOIC |
Data Sheet |
Negotiable |
|
||||
|
MIC2562A-0BM TR |
|
IC CTRLR PCMCIA CARDBUS 14SOIC |
Data Sheet |
Negotiable |
|
||||
