Product Summary
The MIC4826YMM is a high output voltage, DC to AC converter, designed for driving EL (Electroluminescent)lamps. The device operates from an input voltage range of 1.8V to 5.5V, making it suitable for 1-cell Li Ion and 2- or 3-cell alkaline/NiCad/NiMH battery applications. The MIC4826YMM converts a low voltage DC input to a 160VPP AC output signal that drives the EL lamp. The MIC4826YMM applications are: (1)LCD panel backlight; (2)Cellular phones; (3)PDAs; (4)Pagers; (5)Calculators; (6)Remote controls; (7)Portable phones.
Parametrics
MIC4826YMM absolute maximum ratings: (1)Supply Voltage (VDD): －0.5V to +6V; (2)Output Voltage (VCS): －0.5V to +100V; (3)Frequency Control Voltage (VRSW, VREL): －0.5V to (VDD + 0.3V); (4)Power Dissipation TA = 85℃ : 200mW; (5)Storage Temperature (TS): －65℃ to +150℃.
Features
MIC4826YMM features: (1)1.8V to 5.5V DC input voltage; (2)160VPP regulated AC output waveform; (3)Independently adjustable EL lamp frequency; (4)Independently adjustable boost converter frequency; (5)0.1uA shutdown current.

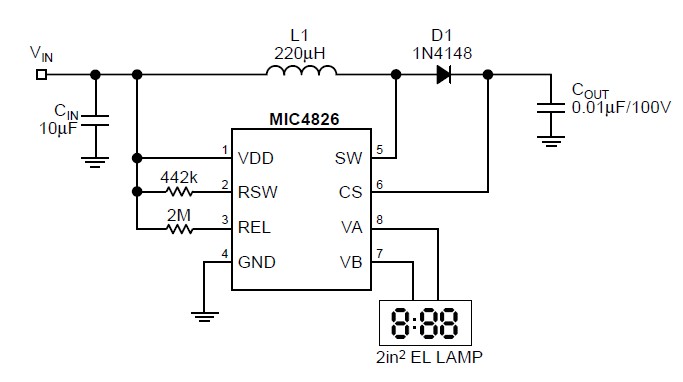

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC4826YMM |
|

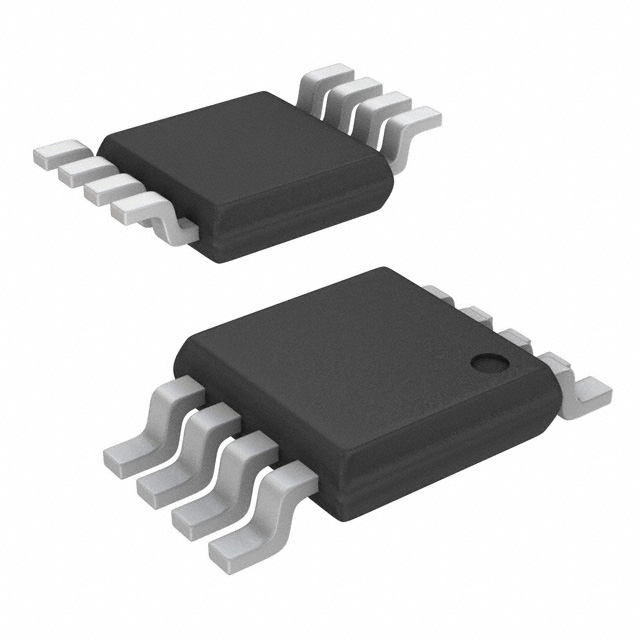

IC EL DRIVER 160VPP OUT 8-MSOP |
Data Sheet |
|
|
||||||||||||||
|
MIC4826YMM TR |
|
IC DRIVER EL DC-AC 160VPP 8MSOP |
Data Sheet |
|
|
||||||||||||||
