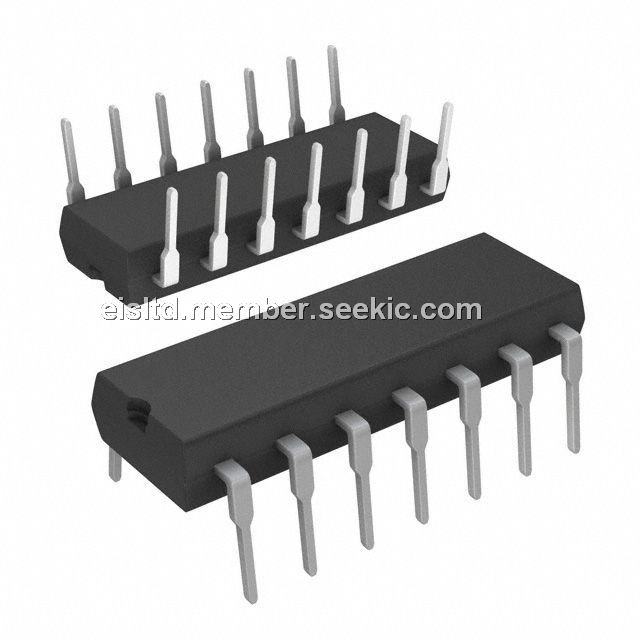

Product Summary
The MM74C907N is a Hex Open Drain P-Channel Buffer. The MM74C907N employs monolithic CMOS technology in achieving open drain outputs. The MM74C907N consists of six inverters driving six P-channel devices. The open drain feature of the buffer makes level shifting or wire AND and wire OR functions by just the addition of pull-up or pull-down resistors. All inputs are protected from static discharge by diode clamps to VCC and to ground.
Parametrics
MM74C907N absolute maximum ratings: (1)Voltage at Any Input Pin: -0.3V to VCC +0.3V; (2)Voltage at Any Output Pin: VCC -18 to VCC +0.3V; (3)Operating Temperature Range: -40℃ to +85℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Power Dissipation, Dual-In-Line: 700 mW; Small Outline: 500 mW; (6)Operating VCC Range: 3V to 15V; (7)Absolute Maximum VCC: 18V; (8)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.
Features
MM74C907N features: (1)Wide supply voltage range: 3V to 15V; (2)Guaranteed noise margin: 1V; (3)High noise immunity: 0.45 VCC (typ.); (4)High current sourcing and sinking open drain outputs.

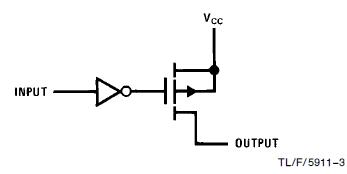

Diagrams
