Product Summary

The NJU39610FM2 is a microstepper motor controller with dual DAC. It is especially developed to be used together with the NJU39610FM2, Precision Stepper Motor driver in micro-stepping applications. The NJU39610FM2 has a set of input registers connected to an 8-bit data port for easy interfacing directly to a microprocessor. The NJU39610FM2 is well suited for highspeed micro-stepping application.

Parametrics

NJU39610FM2 absolute maximum ratings: (1)supply voltage: 6V; (2)logic inputs: -0.3 to VCC+0.3V; (3)Reference input voltage: -0.3 to VCC+0.3V; (4)Logic inputs current: -0.4 to 0.4mA; (5)storage temperature: -55 to 150℃; (6)operating ambient temperature: -20 to 85℃.

Features

NJU39610FM2 features: (1)Analog control voltages from 3 V down to 0.0 V; (2)High-speed microprocessor interface; (3)Automatic fast/slow current decay control; (4)Full-scale error: ±1 LSB; (5)Fast conversion speed: 3 µs; (6)Matches NJM3771; (7)Packages DIP22/PLCC28.

Diagrams

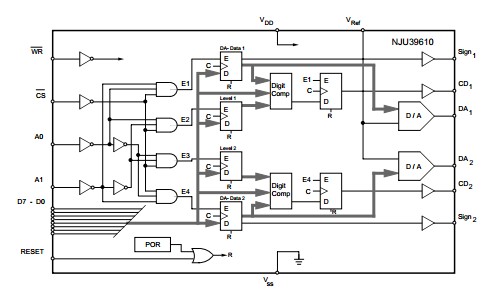

NJU39610FM2 block diagram
