Product Summary

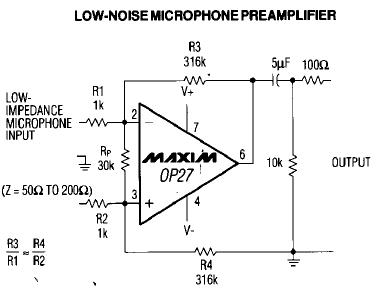

The OP27GP is a precision operational amplifier, provides lower noise and higher speed with the same input offset and drift specifications as the OP07. Both parts have a 10μV offset, 0.2μV/℃ drift, and 1.8 million gain. Coupled with a low-voltage noise of 3.5nV/√Hz at 10Hz and a low 1/f noise corner frequency of 2.7Hz, the OP27GP is optimized for accurate amplification of low-level signals. The OP27GP features an 8MHz gain-bandwidth product and a 2.8V/μs is slew rate. The applications of the OP27GP include low-noise dc amplifiers, microphone amplifiers, precision amplifiers, tape-head preamplifiers, thermocouple amplifiers, low-level signal processing medical instrumentation, strain-gauge amplifiers, high-accuracy data acquisition.

Parametrics

OP27GP absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Input Voltage: ±22V; (3)Output Short-Circuit Duration: Continuous; (4)Differential Input Voltage: ±0.7V; (5)Differential Input Current: ±25mA; (6)Continuous Power Dissipation (TA = +70℃), Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; SO (derate 5.88mW/℃ above +70℃): 471 mW; CERDIP (derate 8.00mW/℃ above +70℃): 640mW; TO-99 (derate 6.67mW/℃ above +70℃): 533mW; (7)Operating Temperature Ranges: 0℃ to +70℃; (8)Junction Temperature Range:-65℃ to +150℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10 sec): +300℃.

Features

OP27GP features: (1)10μV Input Offset Voltage; (2)0.2μV/℃ Drift; (3)3nV/√Hz Input Noise Voltage (1kHz); (4)80nVp-p Noise (0.1 Hz to 10Hz); (5)2.8V/μis Slew Rate (OP27); (6)8MHz Gain-Bandwidth Product (OP27).
