PCA82C250

PCA82C250, CAN controller interface, 8-DIP, 9V, 70mA, Philips Electronics India Limited

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: PCA82C250

Brand:: Philips Electronics India Limited - PHILIPS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-07

From Other Seller

Part Number:PCA82C250
US $0.20 - 1.60
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

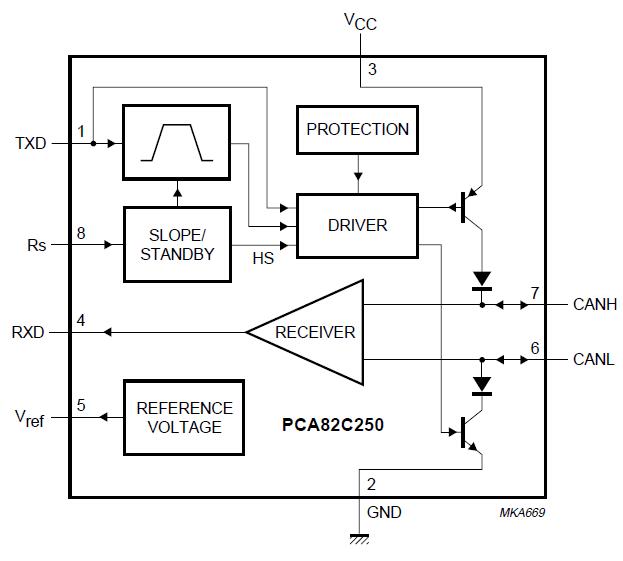

The PCA82C250 is a CAN controller interface. The PCA82C250 is the interface between a CAN protocol controller and the physical bus. The PCA82C250 provides differential transmit capability to the bus and differential receive capability to the CAN controller. The application of the PCA82C250 includes High-speed applications (up to 1 Mbaud) in cars.

Parametrics

PCA82C250 absolute maximum ratings: (1)VCC supply voltage: -0.3 +9.0 V; (2)Vn DC voltage at pins 1, 4, 5 and 8: -0.3 VCC + 0.3 V; (3)V6, 7 DC voltage at pins 6 and 7 0 V < VCC < 5.5 V; no time limit: -8.0 +18.0 V; (4)Vtrt transient voltage at pins 6 and 7: -150 +100 V; (5)Tstg storage temperature: -55 +150℃; (6)Tamb ambient temperature: -40 +125℃; (7)Tvj virtual junction temperature: -40 +150℃; (8)Vesd electrostatic discharge voltage: -2000 +2000 V.

Features

PCA82C250 features: (1)Fully compatible with the ISO 11898 standard; (2)High speed (up to 1 MBd); (3)Bus lines protected against transients iaautomotive environment; (4)Slope control to reduce Radio Frequency Interference (RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference (EMI); (6)Thermally protected; (7)Short-circuit proof to battery and ground; (8)Low-current Standby mode; (9)Aunpowered node does not disturb the bus lines; (10)At least 110 nodes cabe connected.
