The PE3501 is a high-performance dynamic UltraCMOS prescaler with a fixed divide ratio of 2. Its operating frequency range is 400 MHz to 3.5 GHz. The PE3501 operates on a nominal 3 V supply and draws only 12 mA. It is packaged in a small 8-lead TSSOP and is ideal for frequency scaling and microwave PLL synthesis solutions. The PE3501 is manufactured on Peregrine’s UltraCMOS process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, offering the performance of GaAs with the economy and integration of conventional CMOS.
Parametrics
PE3501 absolute maximum ratings: (1)Supply voltage, VDD: 4.0 V; (2)Input Power, Pin: 15 dBm; (3)Storage temperature range, TST: -65 to 150℃; (4)Operating temperature range, TOP: -40 to 85℃; (5)ESD voltage (Human Body Model), VESD: 250 V.
Features
PE3501 features: (1)High-frequency operation: 400 MHz to 3500 MHz; (2)Fixed divide ratio of 2; (3)Low-power operation: 12 mA typical @ 3 V; (4)Small package: 8-lead TSSOP; (5)Low cost.

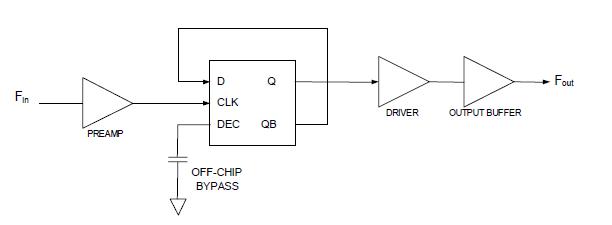

Diagrams
