Product Summary

The RHRG75120 is a hyperfast diode with soft recovery characteristics (trr< 85ns). It has half the recovery time of ultrafast diodes and is of silicon nitride passivated ion-implanted epitaxial planar construction. The RHRG75120 is intended for use as a freewheeling/clamping diode and rectifier in a variety of switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors. The applications of the RHRG75120 include Switching Power Supplies, Power Switching Circuits, General Purpose.

Parametrics

RHRG75120 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 1200V; (2)Working Peak Reverse Voltage, VRWM: 1200V; (3)DC Blocking Voltage, VR: 1200V; (4)Average Rectified Forward Current(TC = 42℃), IF(AV): 75A; (5)Repetitive Peak Surge Current (Square Wave, 20kHz), IFRM: 150A; (6)Nonrepetitive Peak Surge Current (Halfwave, 1Phase, 60Hz), IFSM: 500A; (7)Maximum Power Dissipation, PD: 125W; (8)Avalanche Energy, EAVL: 50mJ; (9)Operating and Storage Temperature, TSTG,TJ: -65 to+175℃.

Features

RHRG75120 features: (1)Hyperfast with Soft Recovery: <85ns; (2)Operating Temperature: 175℃; (3)Reverse Voltage: 1200V; (4)Avalanche Energy Rated; (5)Planar Construction.

Diagrams

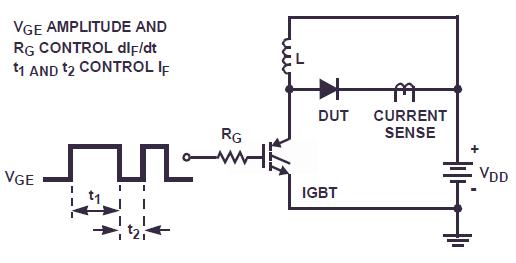

RHRG75120 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RHRG75120
RHRG75120
Fairchild Semiconductor
Rectifiers 75A 1200V
Data Sheet
0-1: $3.17
1-25: $2.83
25-100: $2.32
100-250: $2.09
RHRG75120_Q
RHRG75120_Q
Fairchild Semiconductor
Rectifiers 75A 1200V
Data Sheet
Negotiable
